Same model may have multiple batches, images only for reference.

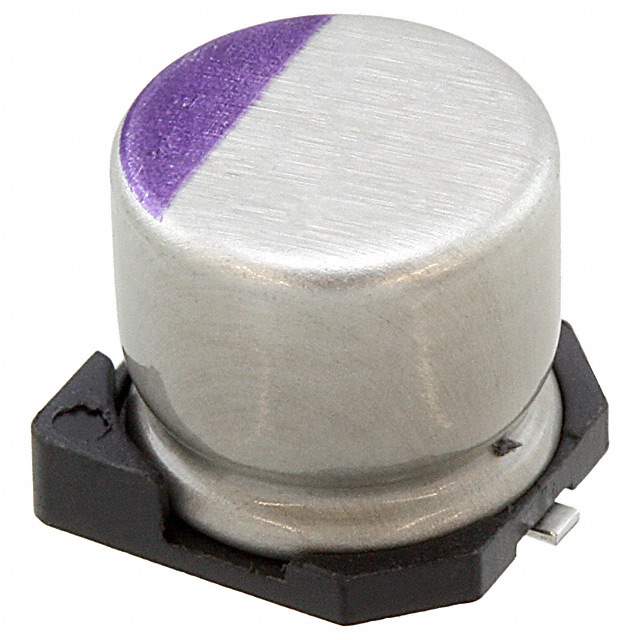

2R5SVPC560M Real Image
Same model may have multiple batches, images only for reference.

2R5SVPC560M

Part No 2R5SVPC560M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 560UF 20% 2.5V SMD
Datasheet
2R5SVPC560M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Type Polymer
Capacitance 560μF
Tolerance ±20%
Voltage Rating 2.5V
ESR 16 mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C to 105°C
Ripple Current - Low Frequency 175mA @ 120Hz
Ripple Current - High Frequency 3.5A @ 100kHz
Height - Seated (Max) 0.236" (6.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Dimension Radial, Can - SMD
Win Source Part Number 124351-2R5SVPC560M
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian 2R5SVPC560M CAD Model

Description

Product Overview: 2R5SVPC560M

The 2R5SVPC560M capacitor is designed to provide a 560μF capacitance at 2.5V, optimizing its use for a wide range of electronic applications that require superior efficiency and longevity.

Features and Benefits:
  • Ultra-low ESR for minimal power loss.
  • Compact package for space-saving in design.
  • High ripple current capacity for robust applications.
  • Long operational life with stable performance.
Applications:
  • DC-DC converters
  • Solar energy systems
  • Battery-operated devices
  • Embedded systems

Enhanced efficiency and miniaturization make the 2R5SVPC560M capacitors ideal for circuits demanding compact and powerful components.
