Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Vishay General Semiconductor - Diodes Division
Series -
Package Bulk
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 200 V
Current - Average Rectified (Io) 3 A
Voltage - Forward (Vf) (Max) @ If 1 V @ 4 A
Current - Reverse Leakage @ Vr 5 µA @ 200 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, GBU
Supplier Device Package GBU
Base Product Number GBU4
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367969-GBU4D-E3/51
Ultra Librarian 3D Model Ultra Librarian GBU4D-E3/51 CAD Model

Description

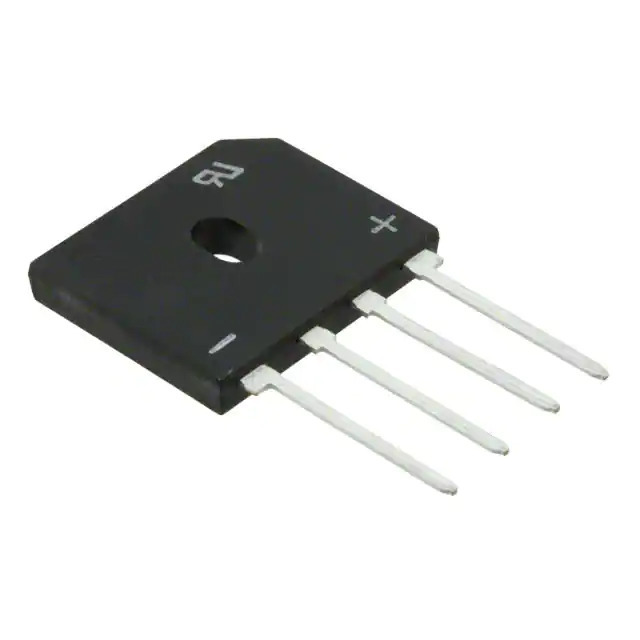

The 1367969-GBU4D-E3/51 is a bridge rectifier diode from Vishay General Semiconductor - Diodes Division.

  • Package/Case: 4-SIP, GBU
  • Supplier Device Package: GBU
  • Current Rating: 3 A
  • Forward Voltage: 1 V @ 4 A
  • Reverse Leakage Current: 5 µA @ 200 V
  • Suitable for: Single-phase diode applications
  • REACH: Unaffected
  • ECCN: EAR99
  • Component Status: Active
