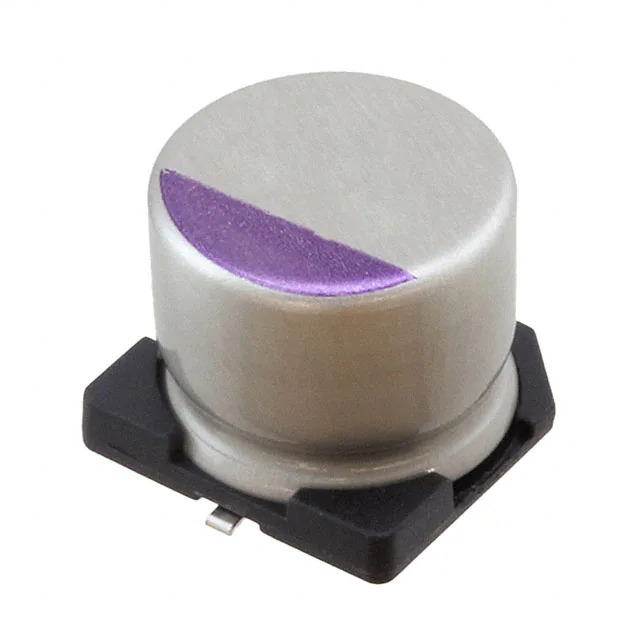

10SVQP120M Panasonic
Same model may have multiple batches, images only for reference.

10SVQP120M

Part No 10SVQP120M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 120UF 20% 10V SMD / 120 µF 10 V Aluminum - Polymer Capacitors Radial, Can - SMD 35mOhm 1000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVQP
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 120 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) 35mOhm
Lifetime @ Temp. 1000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 128 mA @ 120 Hz
Ripple Current @ High Frequency 2.56 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.276" (7.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number 10SVQP
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359485-10SVQP120M
Ultra Librarian 3D Model Ultra Librarian 10SVQP120M CAD Model

Description

The 1359485-10SVQP120M is a polymer capacitor from Panasonic Electronic Components.

  • Series: OS-CON™ SVQP
  • Capacitance: 120 μF
  • Tolerance: ±20%
  • Rated Voltage: 10 V
  • Equivalent Series Resistance (ESR): 35 mOhm
  • Operating Temperature Range: -55°C to 125°C
  • Lifetime: 1000 hours @ 125°C
  • Mounting Type: Surface Mountable
  • Package: Radial, can - SMD
  • Ripple Current (Low Frequency): 128 mA @ 120 Hz
  • Ripple Current (High Frequency): 2.56 A @ 100 kHz
  • Size: 0.315" Dia (8.00mm)
  • Maximum Seated Height: 0.276" (7.00mm)
  • REACH: Unaffected
  • ECCN: EAR99
