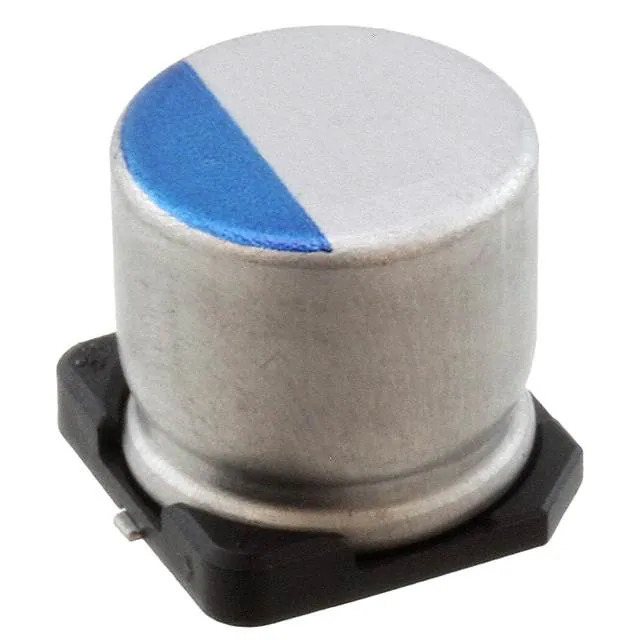

Same model may have multiple batches, images only for reference.
PCV2B120MCL1GS Nichicon
Same model may have multiple batches, images only for reference.

PCV2B120MCL1GS

Part No PCV2B120MCL1GS
Manufacturer Nichicon
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 12UF 20% 125V SMD / 12 µF 125 V Aluminum - Polymer Capacitors Radial, Can - SMD 69mOhm 3000 Hrs @ 105°C
Datasheet
PCV2B120MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Nichicon
Series PCV
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 12 µF
Tolerance ±20%
Voltage - Rated 125 V
ESR (Equivalent Series Resistance) 69mOhm
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ High Frequency 1.4 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.398" (10.10mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
REACH Status REACH Affected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1352389-PCV2B120MCL1GS
Ultra Librarian 3D Model Ultra Librarian PCV2B120MCL1GS CAD Model

Description

The PCV series polymer capacitor from Nichicon is a high-performance component designed for general-purpose applications.

  • Capacitance: 12 µF
  • Voltage Rating: 125 V
  • Temperature Range: -55°C to 105°C
  • Tolerance: ±20%
  • ESR: 69mOhm
  • Package: Radial, Can - SMD
  • Mounting Type: Surface Mount
  • Size: 0.394" (10.00mm) Diameter
  • Height: 0.398" (10.10mm)
  • Lifetime: 3000 Hours @ 105°C
  • REACH: Affected
  • ECCN: Complies with ECCN regulations
  • Product Status: Active
