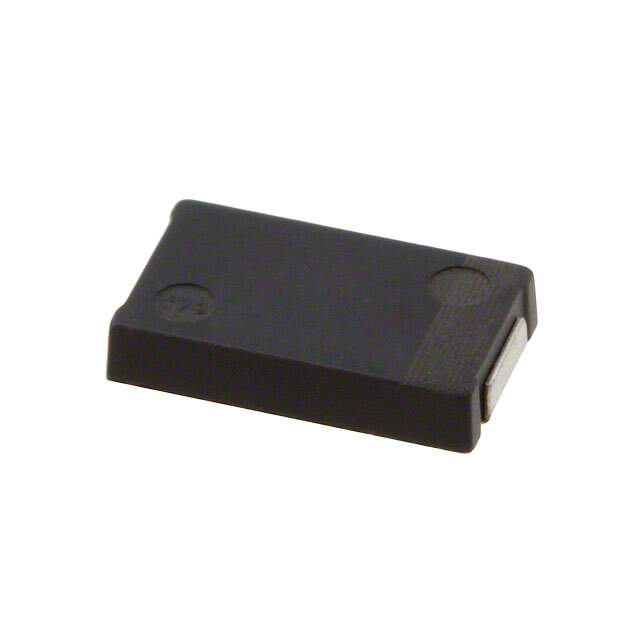

EEF-CT1E220R Real Image
Same model may have multiple batches, images only for reference.

EEF-CT1E220R

Part No EEF-CT1E220R
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 22UF 20% 25V SMD / 22 µF 25 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 40mOhm 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series SP-Cap CT
Package Tape & Reel
Product Status Not For New Designs
Type Polymer
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 40mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 3.2 A @ 100 kHz
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.059" (1.50mm)
Mounting SMD (SMT)
Package / Case 2917 (7343 Metric)
Base Product Number EEF-CT
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names P16808-2,P16808-6,EEFCT1E220R,P16808-1
Standard Package 3,500
Win Source Part Number 1116511-EEF-CT1E220R
Ultra Librarian 3D Model Ultra Librarian EEF-CT1E220R CAD Model

Description

The EEF-CT1E220R is a polymer capacitor manufactured by Panasonic Electronic Components.

  • Series: SP-Cap CT
  • Alternative Part: EEFCT1E220R
  • Capacitance: 22µF
  • Voltage Rating: 25V
  • ESR: 40mOhm
  • Lifetime: 2000 hours @ 105°C
  • Ripple Current: 3.2A @ 100 kHz
  • Case: 2917 (7343 Metric)
  • Mounting Type: Surface-Mount Device
  • Capacitor Type: Aluminum-Polymer
