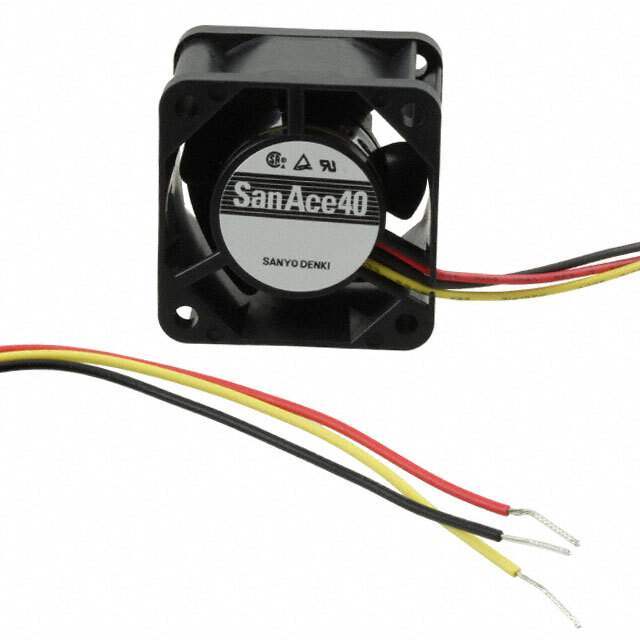

109P0424H6D01 Sanyo Denki America Inc.
Same model may have multiple batches, images only for reference.

109P0424H6D01

Part No 109P0424H6D01
Manufacturer Sanyo Denki America Inc.
Catalog DC Fans
Description FAN AXIAL 40X20MM 24VDC WIRE
Datasheet
109P0424H6D01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310078-109P0424H6D01
Category Fans, Blowers, Thermal Management> Fans >DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Packaging  Box
Part Status Active
Voltage - Rated 24VDC
Size / Dimension Square - 40mm L x 40mm H
Width 20.00mm
Air Flow 8.2 CFM (0.230m³/min)
Bearing Type Ball
Fan Type Tubeaxial
Ultra Librarian 3D Model Ultra Librarian 109P0424H6D01 CAD Model

Description

The 9RA type lineup has been expanded. This fan is ideal for cooling industrial equipment, medical equipment, servers, and other applications that require low noise and low power consumption. The product lineup is available in a wide variety in 12/24/48 voltage, cooling performance, noise level, and PWM control. This allows users to choose the most suitable one for their applications
