Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer ON Semiconductor
Packaging Bulk
Status Obsolete
Mode Average Current
Supply Voltage (V) 14.5V ~ 17V
Temperature Range - Operating -20°C ~ 100°C
Mounting Style Through Hole
Manufacturer Package 44-DIP Module, 35 Leads
Supplier Device Package 44-DIP
Manufacturer Pack Quantity 6
MSL Level 1 (Unlimited)
Win Source Part Number 1261295-STK760-216-E
Manufacturer Homepage www.ssdc-jp.com/eng/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian STK760-216-E CAD Model

Description

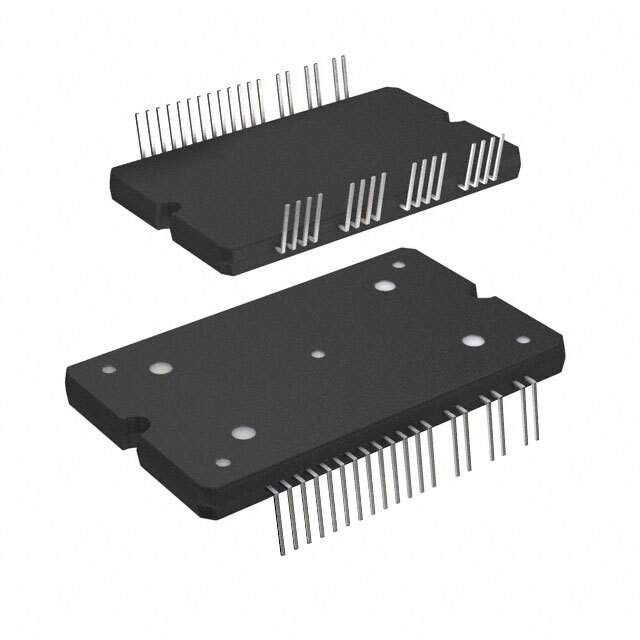

The STK760-216-E from ON Semiconductor is a highly integrated, intelligent power module that offers a compact and efficient solution for a wide range of power applications. This module is designed to simplify the design and improve the reliability of systems that require high power density and efficient power conversion.

Key Features

  • High Voltage Tolerance: The module is capable of handling up to 600 V, making it suitable for various industrial and consumer applications.
  • High Current Capacity: With a current rating of up to 15 A, it can drive sizeable electrical loads with ease.
  • Integrated Gate Drivers: The inclusion of built-in gate drivers simplifies the circuit design and reduces external component count.
  • Thermal Management: The module features an excellent thermal performance due to its insulated metal substrate technology, which helps in maintaining operational stability.
  • Protection Features: It comes with overcurrent, overtemperature, and under-voltage lockout protection, enhancing the safety and reliability of the application.

Applications

The STK760-216-E is versatile and can be used in various applications such as:

  • Motor drives and inverters
  • Power supplies for industrial equipment
  • Renewable energy systems like solar inverters
  • Uninterruptible power supplies (UPS)
  • Induction heating systems

Advantages

Choosing the STK760-216-E intelligent power module for your design offers several advantages:

  • Its compact design enables a reduction in PCB size and overall system footprint.
  • Integration of multiple functions into a single module reduces assembly time and increases system reliability.
  • The advanced protection features ensure a longer lifespan for your application by safeguarding against common electrical faults.
  • ON Semiconductor's reputation for quality and performance means that you can trust the STK760-216-E for your high-power applications.

In conclusion, the ON Semiconductor STK760-216-E is an excellent choice for designers looking to create efficient, reliable, and compact power conversion systems. Its integration of multiple features into one package makes it not only a powerful component but also a cost-effective and space-saving solution.
