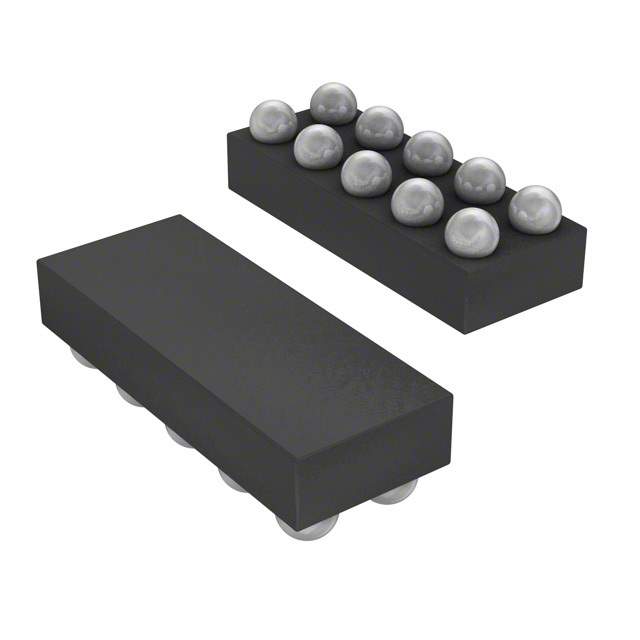

The PACDN1408CG is a state-of-the-art ESD (Electrostatic Discharge) protection device designed and manufactured by ON Semiconductor, a globally recognized leader in power and signal management technologies. This robust component is engineered to safeguard sensitive electronic circuits from the destructive effects of ESD events, which can occur during the manufacturing process or from user interactions with electronic devices.

Key Features

• High ESD Protection: The PACDN1408CG is capable of withstanding ESD strikes of ±15 kV (air discharge) and ±8 kV (contact discharge) as per the IEC 61000-4-2 standard, ensuring reliable protection for your sensitive electronics.
• Low Capacitance: With a low loading capacitance of typically 0.8 pF, this device is particularly suited for high-speed data lines, where signal integrity is paramount.
• Low Leakage Current: It features an ultra-low leakage current, which is essential for battery-powered applications, as it helps to extend the battery life of portable devices.
• Multiple Channel Protection: The PACDN1408CG offers 8 lines of protection, making it an efficient solution for guarding multiple data lines with a single component.
• Compact Package: Housed in a space-saving SOT-23-6 package, this device is ideal for applications where board space is at a premium.

Applications

The PACDN1408CG is versatile and can be used in a wide range of applications, including:

• USB 2.0 Power and Data Line Protection
• HDMI and DisplayPort Interface Protection
• Smartphone and Tablet I/O Port Protection
• Portable Electronic Devices
• Notebooks, Desktops, and Servers

Conclusion

ON Semiconductor's PACDN1408CG is a highly reliable ESD protection solution that combines high-level protection with low capacitance and leakage current. It's suitable for protecting a broad array of electronic devices against the threats posed by electrostatic discharge. The device's compact form factor and multi-channel protection make it an excellent choice for designers looking to enhance the durability and longevity of their products without compromising on performance or space.
