The NLAS7242MUTBG is a high-performance, dual single-pole double-throw (SPDT) analog switch from ON Semiconductor, designed to deliver efficient and reliable switching in a variety of applications. This compact and versatile switch is an ideal solution for signal routing in portable and space-constrained designs.

Key Features

• Low On-Resistance: The device features a low on-resistance of typically 0.5 ohms, which minimizes signal distortion and power loss, ensuring high signal integrity.
• Wide Voltage Range: It operates over a broad voltage range from 1.65V to 4.3V, making it suitable for both 1.8V and 3.3V systems and compatible with various logic levels.
• Single Supply Operation: Designed for single supply operation, this switch simplifies power management in systems where dual supplies are impractical.
• High Current Handling: The NLAS7242MUTBG can handle continuous current up to 300 mA, allowing it to be used in power-routing applications.
• Fast Switching Speed: Fast switching times (ton = 10 ns and toff = 8 ns typical) make it an excellent choice for applications requiring high-speed operation.
• ESD Protection: Enhanced electrostatic discharge (ESD) protection is integrated, withstanding up to ±8 kV Human Body Model (HBM), which helps to prevent damage during handling and operation.

Applications

The NLAS7242MUTBG is well-suited for a wide range of applications, including:

• Signal routing in audio, video, and data communications
• Portable and battery-powered devices
• Cellular phones, PDAs, and other personal electronics
• Sample and hold circuits
• Medical devices

Package and Quality

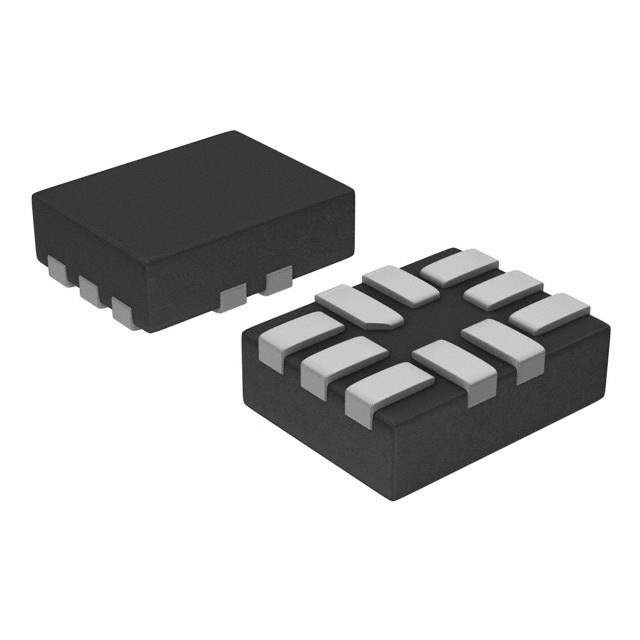

Encased in an ultra-small μDFN package, the NLAS7242MUTBG offers a space-saving solution for modern electronic devices. The product adheres to ON Semiconductor's commitment to quality and reliability, ensuring a dependable component for your design needs.
