ON Semiconductor NLAS7222BMUTBG - High-Performance Analog Switch

The NLAS7222BMUTBG is a state-of-the-art analog switch from ON Semiconductor, designed to deliver superior performance in a wide range of applications. This advanced switch is part of ON Semiconductor's portfolio of high-quality components, renowned for their reliability and cutting-edge technology.

Featuring a dual single-pole, double-throw (SPDT) configuration, the NLAS7222BMUTBG offers versatility for routing analog or digital signals in your electronic designs. It is particularly suitable for multiplexing and signal gating applications, thanks to its bidirectional signal handling capability and low on-resistance.

One of the key advantages of the NLAS7222BMUTBG is its low on-resistance, typically around 0.5 ohms. This low resistance ensures minimal signal distortion and power loss, making it an ideal choice for applications where signal integrity is paramount. Furthermore, the switch is characterized by its low crosstalk and high bandwidth, which are critical parameters for maintaining signal fidelity in high-speed data transmission and sensitive analog signal processing.

The NLAS7222BMUTBG operates over a wide voltage range, from 1.65V to 4.3V, allowing it to be used in various systems without the need for level shifting. This feature simplifies design and reduces component count, leading to more compact and cost-effective solutions. Additionally, the device boasts an extended operating temperature range, making it suitable for use in harsh environments where temperature extremes are a concern.

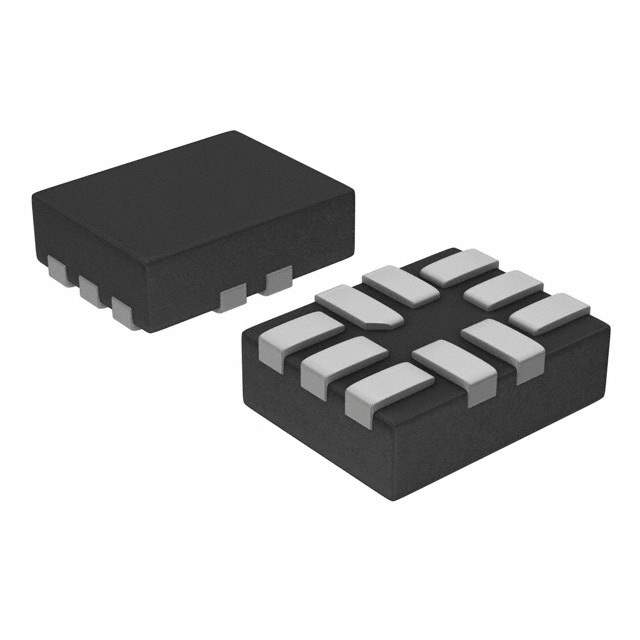

ON Semiconductor has packaged the NLAS7222BMUTBG in an ultra-small µDFN package, which is not only space-saving but also offers excellent thermal performance. The package is lead-free, halogen-free, and RoHS compliant, reflecting ON Semiconductor's commitment to environmental sustainability.

In summary, the NLAS7222BMUTBG from ON Semiconductor is a high-performance analog switch that offers low on-resistance, high bandwidth, and versatile voltage operation, all packed in a compact, environmentally friendly package. It is the perfect choice for designers looking to enhance their applications with a reliable, efficient, and high-quality switching solution.
