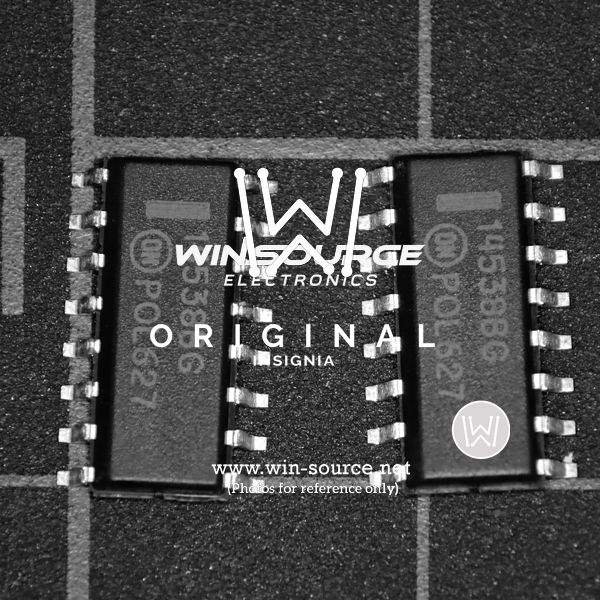

ON Semiconductor MC14538BDG Dual Precision Retriggerable/Resettable Monostable Multivibrator

The ON Semiconductor MC14538BDG is a high-performance, dual monostable multivibrator that provides precise timing for a wide range of pulse generation and waveform shaping applications. This integrated circuit is designed to be retriggerable and resettable, which allows for versatile timing configurations suitable for various electronic systems.

Key Features

• Retriggerable/Resettable Operation: The MC14538BDG can be triggered repeatedly and has a master reset function for each multivibrator, providing flexibility in timing applications.
• Dual Channels: It contains two independent channels that can be used in tandem or individually, offering design versatility.
• Wide Operating Voltage Range: This device operates over a broad voltage range from 3 V to 15 V, making it suitable for interfacing with both TTL (Transistor-Transistor Logic) and CMOS (Complementary Metal-Oxide-Semiconductor) logic levels.
• High Output Current: Capable of sourcing or sinking up to 100 mA of output current, it can directly drive loads in a circuit.
• Output Pulse Width Range: The pulse width is adjustable through external timing components (resistor and capacitor), with the range extending from microseconds to hours.
• Standard Pin Configuration: The MC14538BDG comes in a 16-pin SOIC package, which is widely used and compatible with standard PCB layouts.
• Temperature Stability: The temperature stability of the timing periods ensures reliable operation across a wide temperature range.
• Lead-Free and RoHS Compliant: This component adheres to environmental standards, reducing hazardous substances in electronic devices.

Applications

The MC14538BDG is suitable for a variety of applications, including:

• Timing circuits
• Pulse shaping and delay functions
• Missing pulse detectors
• Sequential timers
• Enabling or disabling functions
• Industrial controls
• Automotive systems
• Communication devices

With its robust feature set and flexibility, the ON Semiconductor MC14538BDG is an ideal choice for designers looking to implement reliable and precise timing solutions in their electronic projects.
