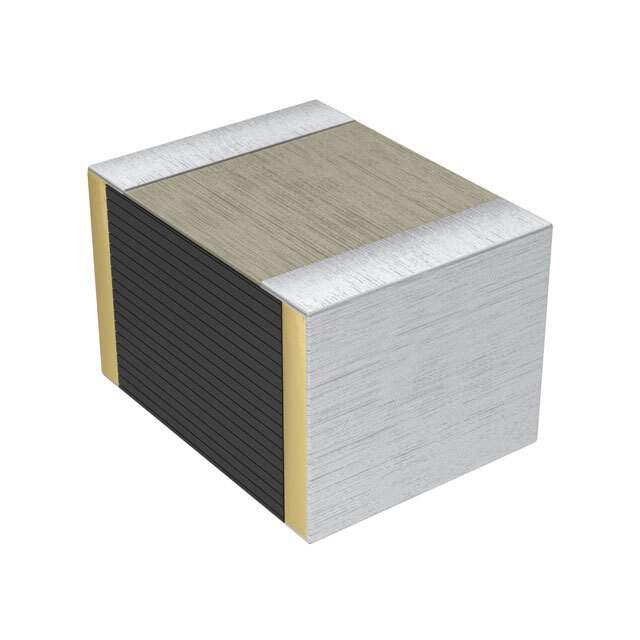

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.1μF
Tolerance ±5%
Voltage Rating - DC 16V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.091" (2.30mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 142728-ECH-U1C104JX5
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management, Industrial
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian ECH-U1C104JX5 CAD Model

Description

Product Overview:
The ECH-U1C104JX5 capacitor is engineered to deliver optimal performance in both consumer-grade and professional electronic circuits. Its robust design makes it highly suitable for precision electronic systems.
Applications:
  • Audio equipment
  • Medical devices
  • Precision instrumentation
  • Automotive electronics
  • IoT devices
Features and Benefits:
  • Enhanced frequency characteristics for reliable operation
  • Low equivalent series resistance (ESR) ensuring minimal energy dissipation
  • Wide operating temperature range from -55°C to 125°C
  • RoHS compliance ensuring safety standards are met
Additional Details:
Capacitance: 100nF<br>Voltage Rating: 16V<br>This component is ideal for electronic developers striving for consistent performance over varied environmental conditions.
