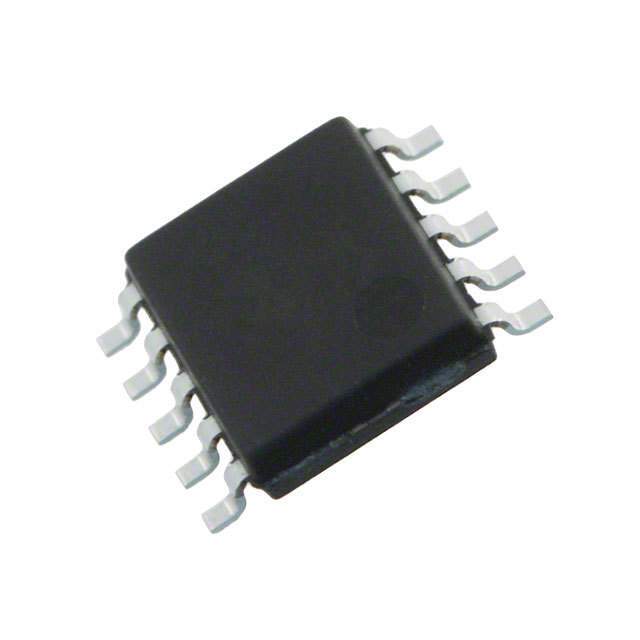

ON Semiconductor LB1948M-TE-L-E Dual H-Bridge Motor Driver

The LB1948M-TE-L-E is a high-performance dual H-Bridge motor driver IC designed and manufactured by ON Semiconductor, a renowned leader in the semiconductor industry. This compact and efficient motor driver is specifically engineered to control small DC motors with exceptional precision and reliability. It is an ideal choice for a wide range of applications, including office automation equipment, home appliances, and battery-powered devices.

Key Features

• Motor Driver Type: Dual H-Bridge, capable of driving two DC motors independently or one stepper motor.
• Output Current: Offers a continuous output current of up to 800 mA per channel, suitable for a variety of small to medium-sized motors.
• Operating Voltage Range: Designed to operate efficiently within a voltage range of 6V to 15V, making it versatile for use in various electronic devices.
• Low Saturation Voltage: Features a low saturation voltage to minimize power loss and enhance overall efficiency during operation.
• Protection Circuits: Integrated thermal shutdown circuit and overcurrent protection to ensure safe operation and longevity of both the motor and the driver IC.
• Package: Available in a compact SOP package, which is ideal for space-constrained applications.

Applications

The LB1948M-TE-L-E is suitable for a diverse array of applications where precise motor control is essential. Its small footprint and robust feature set make it an excellent choice for:

• Portable electronic devices
• Automated office machines like printers and scanners
• Consumer electronics such as cameras and robotic vacuum cleaners
• Small industrial automation equipment
• DIY projects and educational kits involving motor control

With its dual H-Bridge configuration, the LB1948M-TE-L-E allows for easy control of motor direction and speed, providing designers with flexibility and simplicity in their circuit designs. Whether you are developing a new product or improving an existing one, the LB1948M-TE-L-E from ON Semiconductor is a reliable and efficient solution for your motor driving needs.
