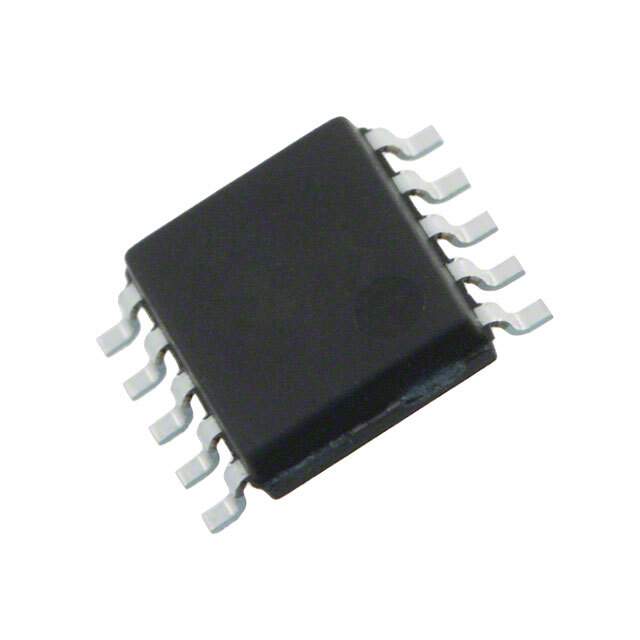

ON Semiconductor LB1909MC-BH Motor Driver IC

The LB1909MC-BH from ON Semiconductor is a versatile and efficient motor driver integrated circuit (IC) designed to cater to the needs of small-scale motor control applications. This sophisticated IC is engineered to drive low-voltage stepper motors and DC brush motors with precision and reliability.

The LB1909MC-BH is a monolithic IC that integrates a full H-bridge driver, which allows for bidirectional control of one DC motor or one phase of a stepper motor. It is capable of delivering an output current of up to 400 mA, making it suitable for a variety of small motors used in consumer electronics, office automation equipment, and portable devices.

Key Features:

• Operating Voltage: The device operates within a voltage range of 2.5V to 9V, making it ideal for battery-operated applications where power efficiency is crucial.
• Low Saturation Voltage: The LB1909MC-BH boasts a low saturation voltage, which minimizes power loss and enhances overall efficiency during motor operation.
• Built-in Protection Circuits: Equipped with thermal shutdown circuitry and an under-voltage lockout (UVLO) feature, the IC ensures the protection of the motor and the driver from potential damage due to overheating or insufficient power supply.
• Compact Package: The motor driver comes in a small-outline package (SOP), allowing for a compact design footprint on printed circuit boards (PCBs).

Applications:

• Small DC motors in portable devices
• Stepper motors in precision control systems
• Office automation machines like printers and scanners
• Consumer electronics such as cameras and toys

The LB1909MC-BH is a testament to ON Semiconductor's commitment to providing high-quality components that enhance the performance and efficiency of electronic systems. Its integration of advanced features in a compact form factor ensures that it is a top choice for designers looking to implement effective motor control solutions in space-constrained applications.
