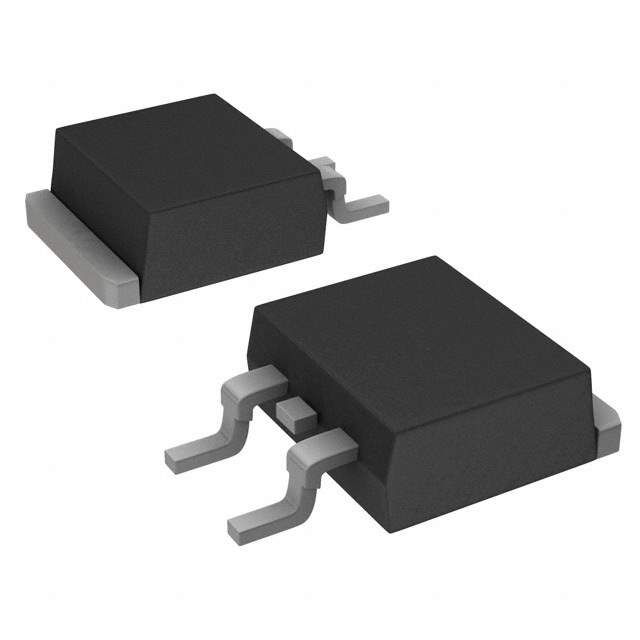

ISL9V3040S3ST-F085C - High-Performance Ignition IGBT

The ISL9V3040S3ST-F085C is a state-of-the-art ignition IGBT designed and manufactured by ON Semiconductor, a leading provider of semiconductor-based solutions. This IGBT is specifically engineered for automotive ignition coil driver applications, delivering exceptional performance and reliability.

Key Features:

• Robust Design: The ISL9V3040S3ST-F085C is built to withstand the harsh conditions of automotive environments. It offers a high breakdown voltage and is capable of handling significant current levels, ensuring a long operational lifespan.
• High Energy Efficiency: With low conduction losses and optimized switching characteristics, this IGBT is designed for high energy efficiency, which is crucial for reducing power dissipation and improving fuel economy in automotive applications.
• Advanced Technology: Utilizing ON Semiconductor's proprietary SPT™ (Soft Punch Through) technology, the ISL9V3040S3ST-F085C provides a softer turn-off waveform, which minimizes electromagnetic interference (EMI) and enhances overall performance.
• High Temperature Operation: Capable of operating at high temperatures, this IGBT can handle the thermal demands of modern engines, ensuring performance stability under extreme conditions.

Applications:

The ISL9V3040S3ST-F085C is designed primarily for use in automotive ignition systems. Its rugged design and high efficiency make it an ideal choice for:

• Direct Ignition Coil Driver Circuits
• Ignition IGBT for Gasoline Engines
• Waste Spark Ignition Systems

Technical Specifications:

• Collector-Emitter Voltage (Vce): 430V
• Collector Current (Ic): 17A
• Total Power Dissipation (Pd): 290W
• Operating Junction Temperature Range: -55°C to +175°C
• Package: D2PAK (TO-263)

The ISL9V3040S3ST-F085C from ON Semiconductor represents a blend of robustness, high efficiency, and advanced technology, making it an excellent choice for designers seeking a reliable ignition IGBT for automotive applications.
