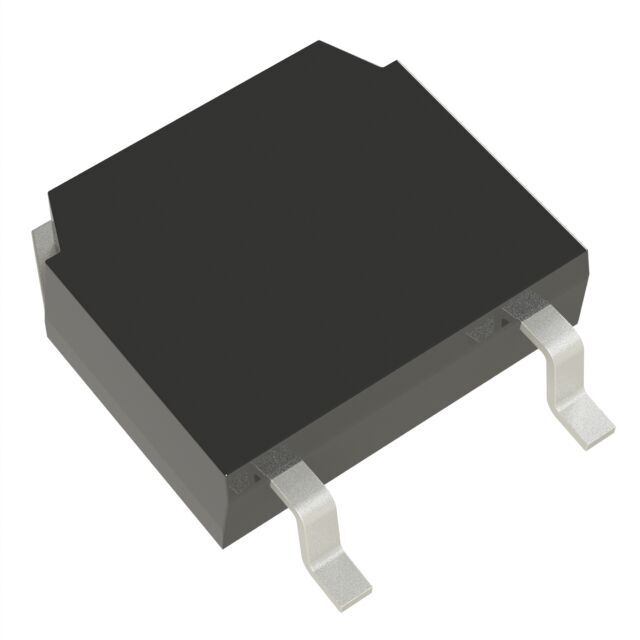

Same model may have multiple batches, images only for reference.
IXBT12N300HV IXYS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

IXBT12N300HV

Part No IXBT12N300HV
Manufacturer IXYS
Catalog IGBTs - Single
Description IGBT 3000V 30A TO-268HV
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor ProductsTransistorsIGBTsSingle IGBTs
Manufacturer IXYS
Series BIMOSFET?
Packaging Tube
Part Status Active
Voltage - Collector Emitter Breakdown (Max) 3000 V
Current - Collector (Ic) (Max) 30 A
Current - Collector Pulsed (Icm) 100 A
Vce(on) (Max) @ Vge, Ic 3.2V @ 15V, 12A
Power - Max 160 W
Input Type Standard
Gate Charge 62 nC
Td (on/off) @ 25°C 64ns/180ns
Test Condition 1250V, 12A, 10Ohm, 15V
Reverse Recovery Time (trr) 1.4 μs
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package TO-268HV (IXBT)
Base Product Number IXBT12
Ultra Librarian 3D Model Ultra Librarian IXBT12N300HV CAD Model
