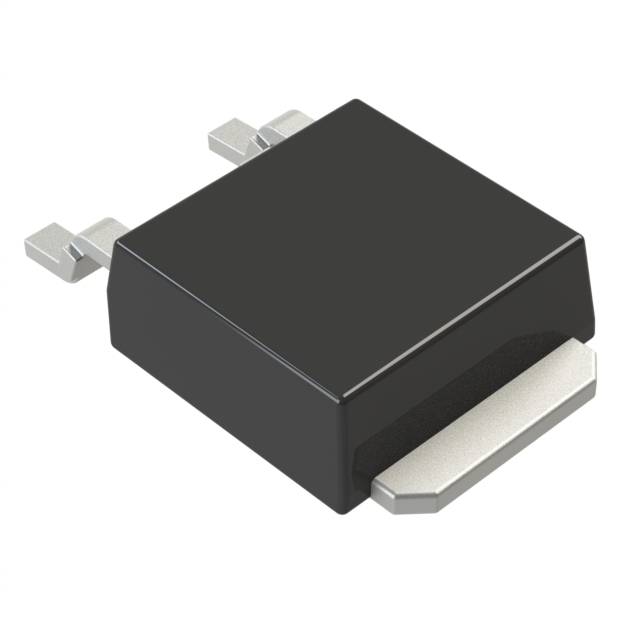

Same model may have multiple batches, images only for reference.
AOD8B65MQ1 Alpha & Omega Semiconductor Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

AOD8B65MQ1

Part No AOD8B65MQ1
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog IGBTs - Single
Description IGBT 650V 16A TO-252
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor ProductsTransistorsIGBTsSingle IGBTs
Manufacturer Alpha & Omega Semiconductor Inc.
Series AlphaIGBT?
Packaging Tape & Reel (TR)
Part Status Active
Voltage - Collector Emitter Breakdown (Max) 650 V
Current - Collector (Ic) (Max) 16 A
Current - Collector Pulsed (Icm) 24 A
Vce(on) (Max) @ Vge, Ic 2.25V @ 15V, 8A
Power - Max 89 W
Switching Energy 160μJ (on), 110μJ (off)
Input Type Standard
Gate Charge 22 nC
Td (on/off) @ 25°C 8.5ns/102ns
Test Condition 400V, 8A, 37.5Ohm, 15V
Reverse Recovery Time (trr) 94 ns
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package TO-252 (DPAK)
Base Product Number AOD8
Ultra Librarian 3D Model Ultra Librarian AOD8B65MQ1 CAD Model
