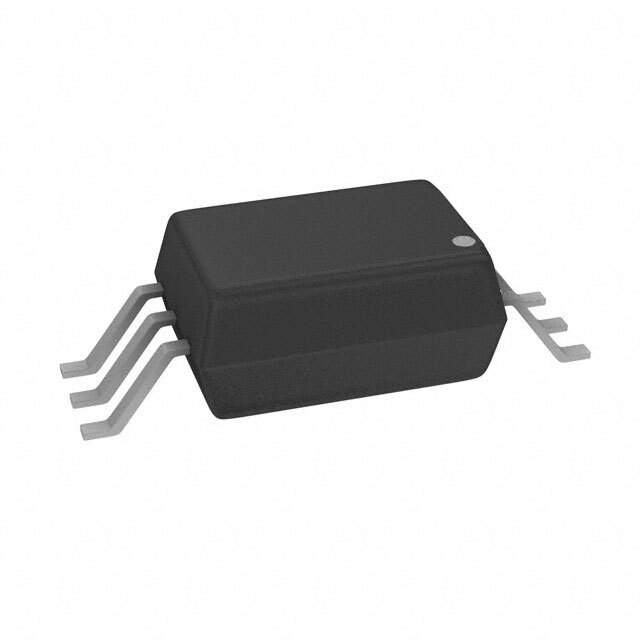

The ON Semiconductor FOD8342 is a state-of-the-art high-speed MOSFET gate drive optocoupler, designed to meet the stringent requirements of advanced electronic systems. This robust component is ideal for driving power MOSFETs and IGBTs that operate in high-power switching applications. The FOD8342 offers excellent isolation capabilities with its optoelectronic coupling, ensuring that the high voltages in the power system do not affect the sensitive control electronics.

Key Features

• High Current Output: The FOD8342 is capable of providing a peak output current of 2.5A, enabling it to drive large capacitive loads with ease, making it perfect for high-speed switching applications.
• Wide Operating Voltage Range: This optocoupler operates over a wide range of input voltages, from 15V to 30V, providing flexibility in a variety of power systems.
• High Isolation Voltage: It offers an isolation voltage of 3750Vrms for 1 minute, providing excellent electrical insulation between the input and output.
• Fast Propagation Delays: The device features propagation delays of 75ns with a maximum pulse width distortion of 35ns, ensuring high-speed operation for fast switching applications.
• CMR Performance: With a common mode rejection (CMR) of 35kV/μs at VCM = 1500V, the FOD8342 is highly resistant to the effects of fast transient noise.
• Under Voltage Lock-Out Protection (UVLO): Integrated UVLO with hysteresis for improved system safety and reliability.

Applications

The FOD8342 is suitable for a wide range of applications, including:

• Industrial inverters
• DC-DC converters
• AC-DC power supplies
• Motor drives
• Renewable energy systems, such as solar inverters and wind turbines

Quality and Reliability

ON Semiconductor is known for its commitment to quality and reliability, and the FOD8342 is no exception. It is built to meet the demands of high-performance industrial systems and is compliant with regulatory standards, ensuring a reliable solution for driving power semiconductors.
