Products specifications

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 32 Weeks

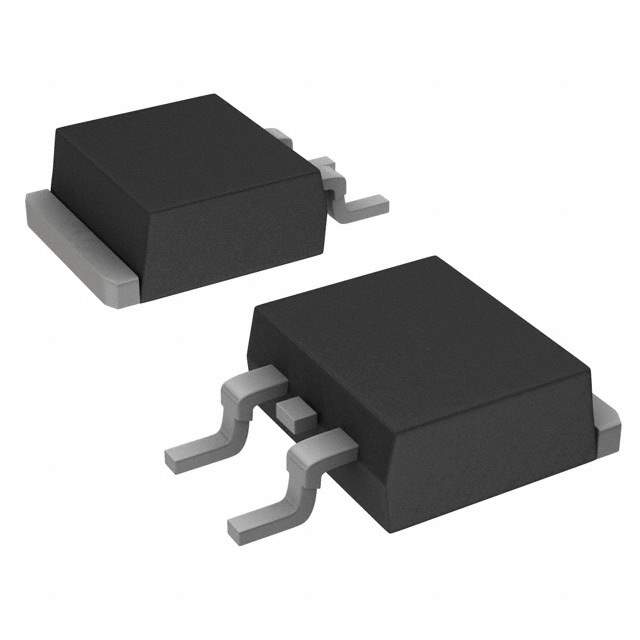

Features Diode Schottky 1200 V 32A (DC) Surface Mount D²PAK-3 (TO-263-3)
Manufacturer ON Semiconductor
Package Reel - TR
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Surface Mount
Package TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Case / Package D²PAK-3 (TO-263-3)
Family Name FFSB20120
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 800
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871741-FFSB20120A
Ultra Librarian 3D Model Ultra Librarian FFSB20120A CAD Model

Description

The ON Semiconductor FFSB20120A is a state-of-the-art power rectifier that is designed to deliver high efficiency and reliability for a wide range of applications. This device is a part of the PowerTrench® series, which is known for its low forward voltage drop and optimized reverse recovery characteristics. The FFSB20120A is particularly suitable for high-frequency power switching in power supplies, converters, and power management systems.

Key Features

  • High Voltage Capability: The FFSB20120A is rated for a maximum repetitive reverse voltage (Vrrm) of 1200V, making it suitable for high-voltage applications.
  • Low Forward Voltage Drop: With a low typical forward voltage drop of 1.7V, this rectifier ensures high efficiency in power conversion, leading to energy savings.
  • Fast Recovery Time: The device exhibits a fast reverse recovery time, which minimizes power losses during switching and improves the overall performance of the application.
  • High Surge Current Capability: It can handle high surge currents, which is crucial for applications that experience short bursts of high current.
  • PowerTrench® Technology: This proprietary technology from ON Semiconductor enhances the device's switching performance and reduces switching losses.

Applications

The FFSB20120A is ideal for a variety of applications, including:

  • Switch Mode Power Supplies (SMPS)
  • Uninterruptible Power Supplies (UPS)
  • Power Factor Correction (PFC) circuits
  • High-frequency rectifiers in consumer and industrial applications

Package and Environmental Compliance

The FFSB20120A comes in a TO-263 package, which is designed for improved thermal performance and space-saving on the PCB. ON Semiconductor is committed to environmental stewardship and the FFSB20120A is compliant with RoHS directives, ensuring that it is free from hazardous substances.

Conclusion

The ON Semiconductor FFSB20120A combines high voltage capability, low forward voltage drop, fast recovery time, and high surge current capability, making it a robust and efficient solution for high-performance power rectification needs. Whether for industrial, consumer, or computing applications, the FFSB20120A provides designers with a reliable and energy-efficient component that is backed by ON Semiconductor's reputation for quality and innovation.
