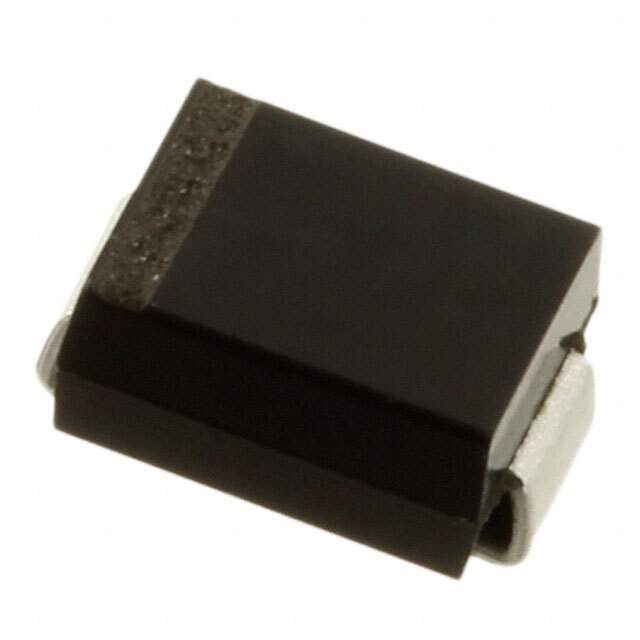

CMSH1-60 TR13 PBFREE Real Image
Same model may have multiple batches, images only for reference.

CMSH1-60 TR13 PBFREE

Part No CMSH1-60 TR13 PBFREE
Manufacturer Central Semiconductor Corp
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 1A SMB  /  Diode Schottky 60 V 1A Surface Mount SMB
Datasheet
CMSH1-60 TR13 PBFREE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Central Semiconductor Corp
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 700 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 60 V
Capacitance @ Vr, F 80pF @ 4V, 1MHz
Mounting SMD (SMT)
Package / Case DO-214AA, SMB
Supplier Device Package SMB
Operating Temperature - Junction -65°C ~ 150°C
Base Product Number CMSH1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names CMSH1-60 DKR-ND,CMSH1-60 DKR,CMSH1-60TR-ND,1514-CMSH1-60TR13PBFREECT,CMSH1-60CT,CMSH1-60 TR,CMSH1-60TR,CMSH1-60 TR13,1514-CMSH1-60TR13PBFREEDKR,CMSH1-60 TR13 LEAD FREE,CMSH1-60 CT-ND,CMSH1-60DKR,CMSH1-60CT-ND,1514-CMSH1-60TR13PBFREETR,CMSH1-60 TR-ND,CMSH1-60 CT,CMSH1-60DKR-ND
Standard Package 3,000
Win Source Part Number 1052735-CMSH1-60 TR13 PBFREE
Ultra Librarian 3D Model Ultra Librarian CMSH1-60 TR13 PBFREE CAD Model

Description

The CMSH1-60 TR13 PBFREE electronic component is a fast recovery Schottky diode.

  • Voltage Reverse (Vr): 60V
  • Average Rectified Current (Io): 1A
  • Forward Voltage (Vf): 700mV @ 1A
  • Reverse Leakage Current: 500μA @ 60V
  • Capacitance: 80pF @ 4V, 1MHz
  • Operating Temperature Range: -65°C to 150°C
  • Package: DO-214AA, SMB
  • ECCN: EAR99
