Products specifications

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr ON Semiconductor
Package Tape & Reel
Product Status Not For New Designs
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 50 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 700 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 µA @ 50 V
Mounting Type Surface Mount

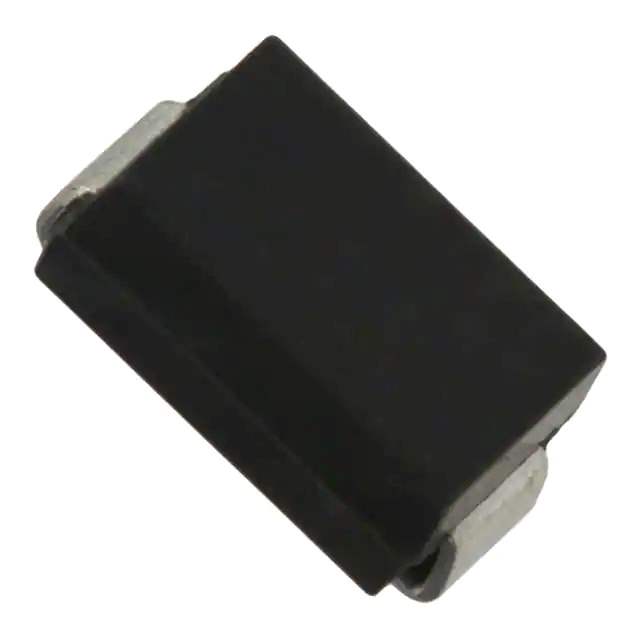

Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Operating Temperature - Junction -65°C ~ 125°C
Base Product Number SS15
Standard Package 7,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 676251-SS15
Ultra Librarian 3D Model Ultra Librarian SS15 CAD Model

Description

The ON Semiconductor SS15 Schottky Barrier Rectifier is a high-performance, surface-mount diode designed for applications requiring low voltage drop and high current capability. This rectifier is part of ON Semiconductor's extensive Schottky diode portfolio, which is known for its efficiency and reliability in a wide range of electronic circuits.

Key Features

  • Low Forward Voltage Drop: The SS15 offers a low forward voltage drop, which enhances the overall efficiency of the application by reducing power loss during operation.
  • High Current Capability: With its ability to handle a high forward surge current, this diode is suitable for applications that experience high current demands, such as power supply and converter circuits.
  • Surface-Mount Package: The compact SMB (DO-214AA) package allows for efficient use of PCB space and is ideal for automated assembly processes.
  • Guard Ring Die Construction: The guard ring design provides enhanced reliability and stability by protecting against potential voltage spikes and transient events.
  • Low Power Loss: The SS15's efficient operation translates to minimal power loss, making it a suitable choice for high-efficiency power systems.

Applications

The ON Semiconductor SS15 is versatile and can be used in a variety of applications, including:

  • Power supply circuits
  • DC-DC converters
  • Free-wheeling diodes in converters and motor control circuits
  • Polarity protection applications
  • Low voltage, high-frequency inverters

Specifications

Parameter Value Maximum Repetitive Reverse Voltage (V<sub>RRM) 50V Average Rectified Forward Current (I<sub>o) 1A Forward Voltage Drop (V<sub>F) @ I<sub>F 0.55V @ 1A Operating Junction Temperature Range (T<sub>J) -55°C to +125°C

The ON Semiconductor SS15 Schottky Barrier Rectifier is a robust and efficient solution for designers looking to enhance the performance of their power management systems. Its combination of low forward voltage drop, high current capability, and compact form factor makes it an excellent choice for modern electronic applications.
