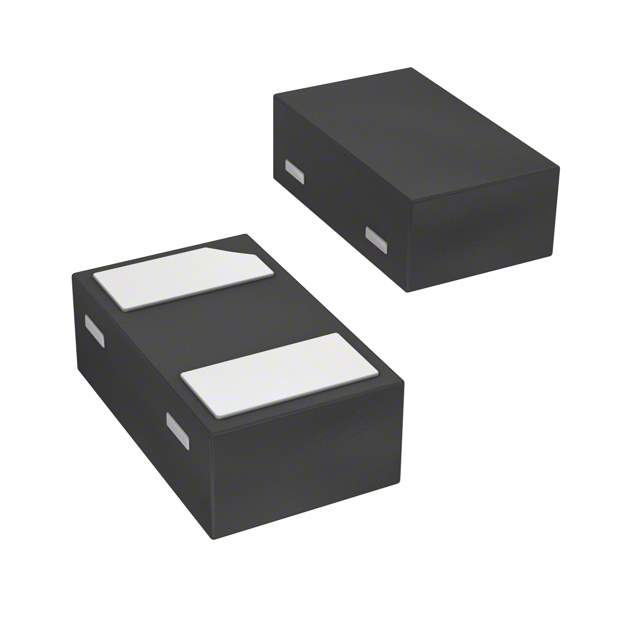

ON Semiconductor ESD7241N2T5G Overview

The ESD7241N2T5G from ON Semiconductor is an advanced ESD (Electrostatic Discharge) protection device designed to safeguard high-speed data lines from damaging electrostatic discharge pulses. This component is a crucial addition to any circuit where data integrity and component protection are paramount, such as USB interfaces, HDMI, eSATA, and other high-speed data lines in consumer electronics, computing, and communication devices.

Key Features

• Low Clamping Voltage: The ESD7241N2T5G offers a low dynamic resistance and clamping voltage, ensuring that sensitive circuits are well-protected while maintaining signal integrity.
• High ESD Protection: It is capable of withstanding ESD events up to ±20 kV (air discharge) and ±12 kV (contact discharge) as per the IEC61000-4-2 standard, providing robust protection for critical components.
• Small Package Size: Housed in a small SOT-723 package, this device is ideal for space-constrained applications, allowing for high-density circuit board designs without sacrificing performance.
• Low Capacitance: With a low loading capacitance of typically 0.3 pF, the ESD7241N2T5G is suitable for protecting high-speed data lines without compromising signal speeds.
• Fast Response Time: The device has an extremely fast response time to ESD strikes, ensuring quick and reliable protection when it is most needed.

Applications

The ESD7241N2T5G is versatile and can be used across a wide range of applications where ESD sensitivity is a concern. It is particularly well-suited for:

• Portable electronics such as smartphones, tablets, and laptops
• Digital interfaces like HDMI, USB 2.0/3.0, and Thunderbolt
• High-speed data line and signal line protection
• Consumer electronics including TVs, set-top boxes, and gaming consoles
• Industrial controls and automotive infotainment systems

With its combination of high ESD protection, low capacitance, and small form factor, the ESD7241N2T5G from ON Semiconductor is an excellent choice for engineers looking to enhance the durability and longevity of their electronic designs.
