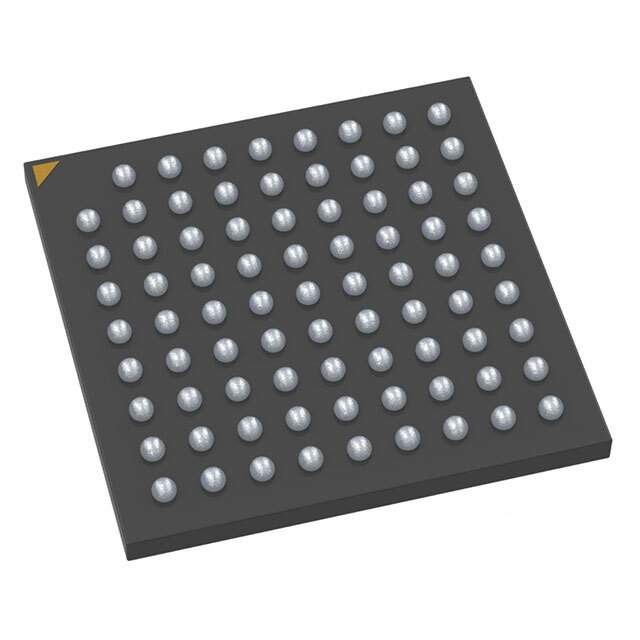

ON Semiconductor AR0135CS2M25SUEA0-DPBR1 Product Overview

The AR0135CS2M25SUEA0-DPBR1 is a cutting-edge CMOS digital image sensor from ON Semiconductor, designed to deliver superior imaging performance in a variety of challenging lighting conditions. This sensor is a perfect choice for applications that require high-quality video capture, such as surveillance, automotive, drone, and industrial imaging systems.

Key Features:

• Resolution: The sensor boasts a 1/3-inch optical format and provides a 1.2 Megapixel resolution (1280 x 960 pixels), ensuring crisp and clear images.
• Pixel Size: With a pixel size of 3.75 µm x 3.75 µm, it offers an excellent balance between sensitivity and resolution, making it ideal for both low-light and daylight conditions.
• Frame Rate: It supports a high frame rate of up to 45 frames per second at full resolution, allowing for smooth video capture without motion blur.
• Dynamic Range: The sensor features an impressive 83 dB dynamic range, providing detailed images even in high-contrast scenes.
• Shutter Type: Equipped with a global shutter, the AR0135CS2M25SUEA0-DPBR1 captures images simultaneously across the entire sensor, eliminating the rolling shutter artifacts associated with fast-moving objects.

Advanced Imaging Capabilities:

The AR0135CS2M25SUEA0-DPBR1 integrates advanced imaging features such as automatic exposure control, automatic gain control, and automatic white balance, simplifying the task of capturing high-quality images under varying lighting conditions. Additionally, it includes advanced noise reduction algorithms, which help to deliver clear, noise-free images.

Interface and Integration:

This sensor offers a flexible and user-friendly interface, supporting both parallel and serial output for easy integration with a wide range of processors and FPGAs. The compact design of the sensor module, along with its industry-standard footprint, makes it easy to fit into space-constrained applications.

Environmental Adaptability:

Designed to perform reliably in harsh environments, the AR0135CS2M25SUEA0-DPBR1 operates within an extended temperature range and has passed rigorous testing for stability and durability.

Applications:

The versatility of the AR0135CS2M25SUEA0-DPBR1 makes it suitable for a wide array of applications, including but not limited to:

• Security and Surveillance Cameras
• Automotive Vision Systems
• Industrial Machine Vision
• Unmanned Aerial Vehicles (UAVs)
• Medical Imaging Devices
