ON Semiconductor ADT7476AARQZ-RL7

The ADT7476AARQZ-RL7 from ON Semiconductor is a versatile and high-performance temperature sensor and fan controller integrated circuit (IC) designed to cater to the demanding needs of complex electronic systems. This advanced device is capable of monitoring and controlling the thermal environment within personal computers, servers, and other embedded applications, ensuring that the system operates within its specified thermal limits.

Key Features:

• Multiple Temperature Sensors: The IC comes equipped with three temperature sensors. One internal sensor monitors the device itself, while two remote sensors are available for monitoring other components such as the CPU or GPU.
• Fan Speed Control: The ADT7476AARQZ-RL7 can control up to four fans. It supports both voltage-controlled (3-wire) and PWM-controlled (4-wire) fans, providing flexibility in managing system cooling strategies.
• Automatic Fan Speed Adjustment: It features automatic fan speed control based on temperature inputs, which helps in reducing noise and power consumption when the system is running cool, and ramps up the fan speed when the system heats up.
• Programmable Settings: Users can program the fan speed response to temperature changes, setting thresholds and response curves to optimize the cooling performance for specific system requirements.
• I²C/SMBus Interface: The device is equipped with an I²C-compatible serial bus interface that allows for easy communication and configuration by the host system.
• Over-temperature Protection: The IC provides over-temperature alarm outputs that can be used to trigger system protection mechanisms in the event of excessive heat build-up.

Applications:

The ADT7476AARQZ-RL7 is ideal for use in various applications that require precise thermal monitoring and fan control, such as:

• Desktop and Laptop Computers
• Servers and Workstations
• Telecommunication Systems
• Industrial PCs and Embedded Systems

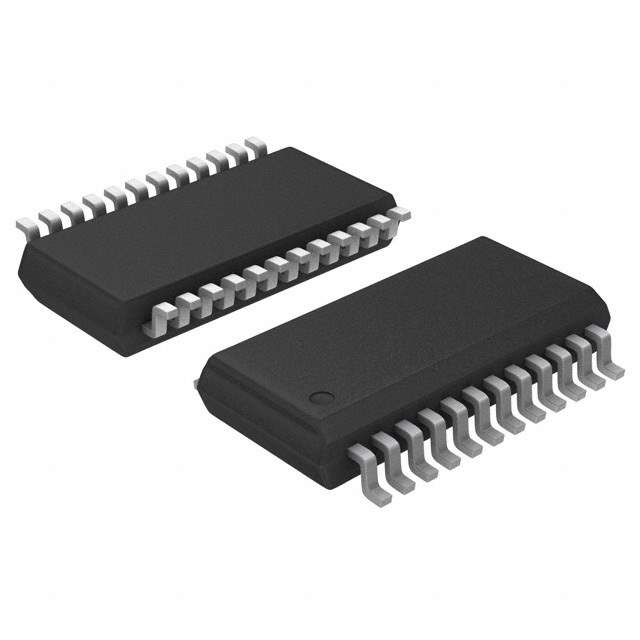

This IC comes in a compact 24-lead QSOP package, making it suitable for space-constrained environments while offering robust thermal management capabilities. With its comprehensive feature set and ON Semiconductor's reputation for reliability, the ADT7476AARQZ-RL7 is an excellent choice for designers looking to enhance the thermal efficiency of their systems.
