ON Semiconductor 74LVXC3245WM Product Overview

The 74LVXC3245WM from ON Semiconductor is a versatile, high-performance octal bidirectional transceiver designed for asynchronous communication between data buses. This integrated circuit is part of the 74LVX family and is fabricated with advanced CMOS technology to achieve high-speed operation while maintaining low power consumption.

Key Features

• Wide Operating Voltage Range: The device supports a wide operating voltage range from 2.7V to 3.6V, making it suitable for interfacing with both 3.3V and 2.5V logic levels.
• High-Speed Data Transfer: It has the capability to transfer data at high speeds, which is essential for modern digital systems that require quick data processing and throughput.
• Octal Bidirectional Interface: Featuring eight bidirectional data lines, it allows for the efficient transfer of data in both directions, facilitating communication between different bus architectures.
• Bus-Hold Data Inputs: The bus-hold feature on data inputs eliminates the need for external pull-up or pull-down resistors, simplifying board design and reducing component count.
• Flow-Through Architecture: The design of the 74LVXC3245WM allows for easy PCB layout with its flow-through architecture, which simplifies the trace routing for signals passing through the device.
• Low Power Consumption: Utilizing advanced CMOS technology, the device is optimized for low power dissipation, which is crucial for battery-operated and power-sensitive applications.

Applications

The 74LVXC3245WM is suitable for a variety of applications where efficient data transfer between different voltage domains is required. It is commonly used in:

• Motherboards and peripheral interfaces
• Networking equipment and telecommunications systems
• Data acquisition systems
• Embedded systems and microcontroller-based applications

Package and Quality

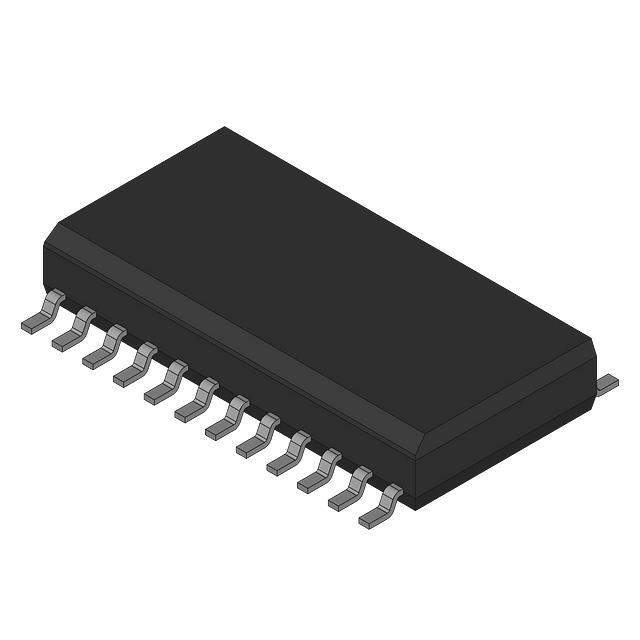

ON Semiconductor's 74LVXC3245WM is offered in a 24-lead SOIC (Small Outline Integrated Circuit) package, ensuring a compact footprint suitable for space-constrained applications. The device is also compliant with industry standards for quality and reliability, ensuring stable performance across various environmental conditions.

With its combination of features, the 74LVXC3245WM is an excellent choice for designers looking for a reliable and efficient solution to facilitate data transfer between different logic levels in their digital systems.
