ON Semiconductor 74LVX3245QSC: A Versatile Octal Bidirectional Transceiver

The 74LVX3245QSC from ON Semiconductor is a high-performance, low-voltage CMOS octal transceiver designed for asynchronous communication between data buses. This integrated circuit is part of the 74LVX family, which is renowned for its low-voltage operation and compatibility with LVTTL and LVCMOS technologies.

Featuring eight bidirectional data lines, the 74LVX3245QSC is capable of transferring data from the A bus to the B bus and vice versa, depending on the logic level at the direction control (DIR) input. The output enable (OE) input serves as an additional control feature, allowing the user to place the I/O ports in a high-impedance state for multiplexed data lines where output contention may occur.

This transceiver operates at a voltage range of 2.7V to 3.6V, which allows for interfacing with 3.3V logic levels while maintaining 5V tolerant inputs. The low-voltage operation helps minimize power consumption, making the 74LVX3245QSC an energy-efficient choice for modern electronic applications.

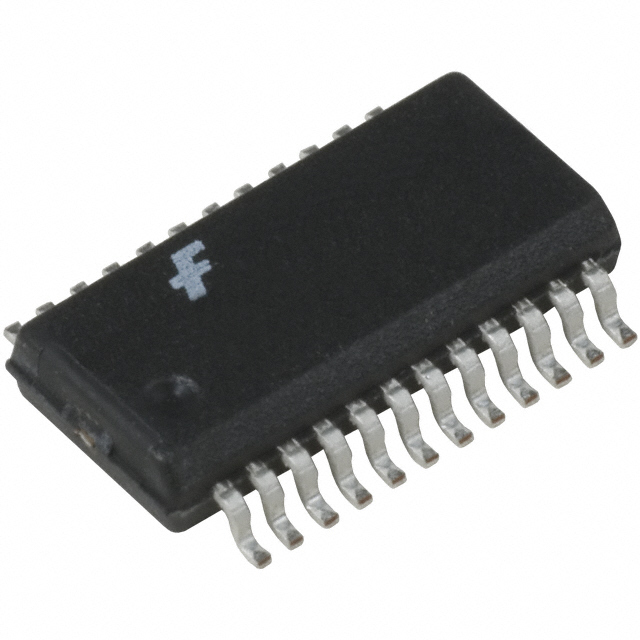

The 74LVX3245QSC comes in a QSOP package, which is suitable for space-constrained applications. The package is lead-free and complies with current environmental standards, ensuring that the product is suitable for use in eco-friendly devices.

Key features of the 74LVX3245QSC include:

• Eight bidirectional data paths for efficient data transfer
• Control inputs for direction and output enable functions
• 5V tolerant inputs for compatibility with mixed-voltage environments
• Low-power consumption due to CMOS technology
• Guaranteed output skew for improved data integrity
• QSOP package for compact circuit design
• Lead-free and environmentally compliant

The ON Semiconductor 74LVX3245QSC is an ideal solution for applications requiring bidirectional data flow and voltage level translation, such as computing, networking, and telecommunications systems. Its ability to interface with both 3.3V and 5V logic levels makes it a versatile component for mixed-voltage designs.
