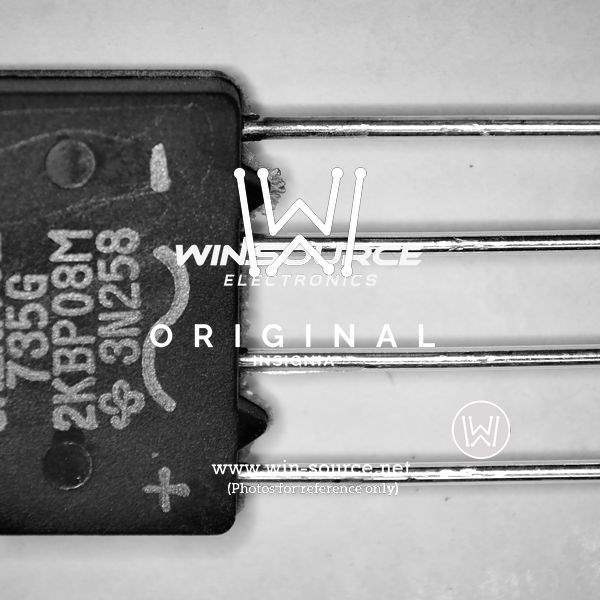

The ON Semiconductor 2KBP08M is a robust single-phase bridge rectifier designed for high efficiency and reliability in electronic circuits. It is a versatile component suitable for a wide range of applications, including power supplies, battery chargers, and other electronic devices that require rectification of alternating current (AC) to direct current (DC).

Key Features

• Peak Repetitive Reverse Voltage: The 2KBP08M has a peak repetitive reverse voltage (Vrrm) of 800 volts, making it capable of handling high voltage applications.
• Forward Current: It offers a high forward current of 2 amperes, ensuring it can support a significant amount of current flow in the circuit.
• Surge Overload Rating: This bridge rectifier can withstand surge overload rating up to 60 amperes, providing excellent surge handling capability.
• Isolation Voltage: With an isolation voltage of 2500 volts RMS, the 2KBP08M ensures safe operation by maintaining electrical isolation between the input and output.
• Case: The device is encapsulated in a reliable molded plastic case that provides enhanced durability and thermal performance.
• Mounting: Its through-hole mounting design allows for easy installation onto printed circuit boards (PCBs).
• Operating Temperature: It operates over a wide temperature range from -55°C to +150°C, suitable for various environmental conditions.

Applications

The 2KBP08M bridge rectifier is ideal for use in a variety of electronic applications that require efficient and reliable AC to DC conversion. Its high voltage and current capabilities make it particularly well-suited for power supply units, adapters, and other power conversion systems.

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the 2KBP08M is no exception. It is built to meet stringent industry standards, ensuring long-term reliability and performance in your electronic projects.
