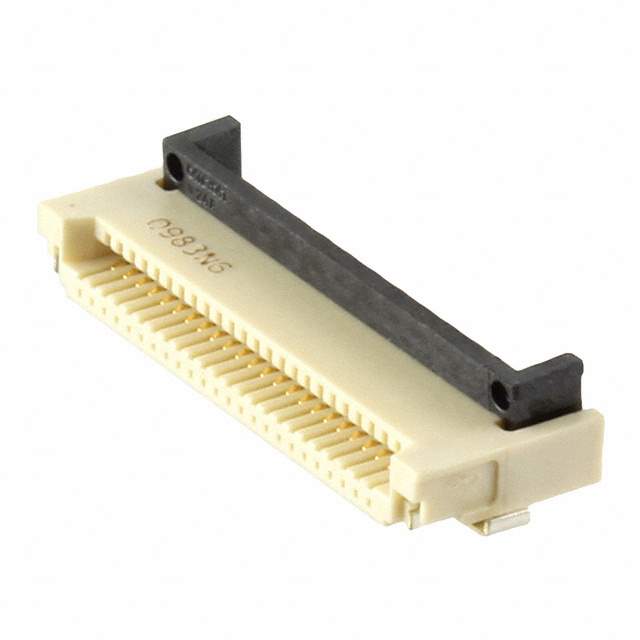

XF3M-2415-1B

Name: XF3M-2415-1B
Brand: Omron
SKU: 1338078
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	XF3M-2415-1B
Manufacturer	Omron
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC FPC 24POS 0.5MM R/A / 24 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet	XF3M-2415-1B Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr	Omron Electronics Inc-EMC Div
Series	XF3M
Package	Tape & Reel
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	24
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.079" (2.00mm)
Locking Feature	Rotary Lock, Backlock
Cable End Type	Tapered
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP) , Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP) , Halogen Free
Features	Solder Retention
Voltage Rating	50V
Temperature Range - Operating	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	Flash
Housing Color	Natural
Actuator Color	Black
Mating Cycles	20
Base Product Number	XF3M
Standard Package	1,500
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Win Source Part Number	1338078-XF3M-2415-1B
Ultra Librarian 3D Model	Ultra Librarian XF3M-2415-1B CAD Model

Description

The Omron XF3M-2415-1B is an FFC/FPC connector assembly used in various applications.

Positions: 24
Pitch: 0.5mm
Series: XF3M
Standard Package: 1,500
Manufacturer: Omron Electronics Inc-EMC Div
Current Rating: 0.5A
Operating Temperature: -30°C to 85°C
