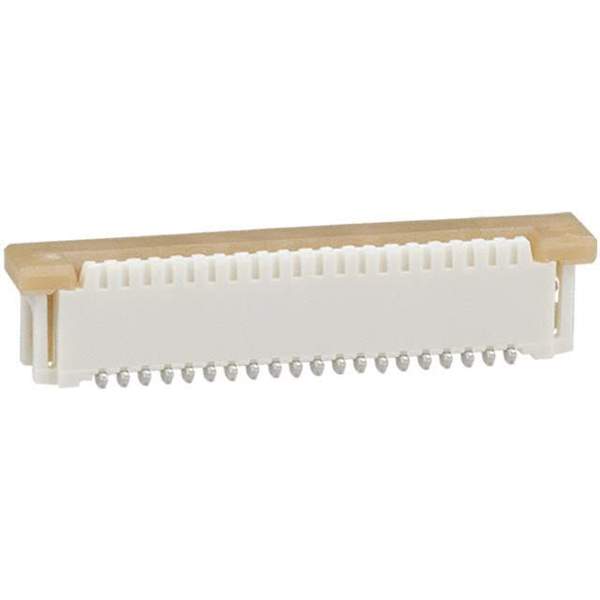

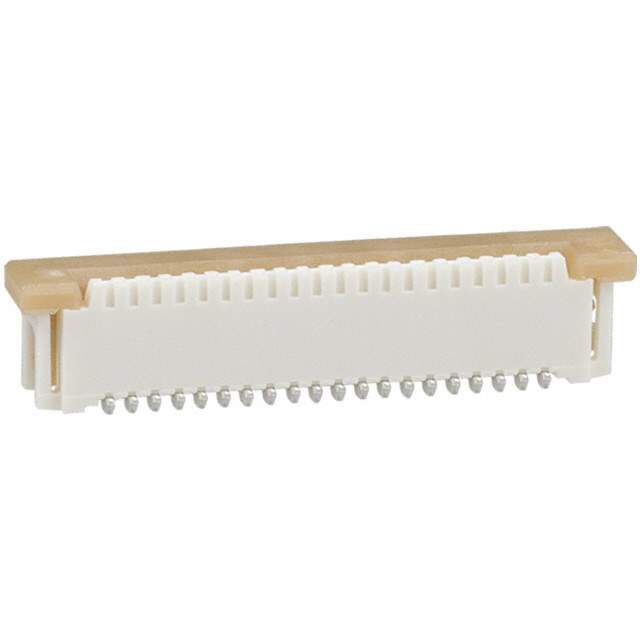

Same model may have multiple batches, images only for reference.

526102071

Name: 526102071
Brand: Molex, LLC
SKU: 1204966
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	526102071
Manufacturer	Molex, LLC
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	Conn FFC/FPC Connector SKT 20 POS 1mm Solder ST SMD Easy-On™ Embossed T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Actuator Material	Polyphenylene
Contact Material	Bronze
Contact Plating	Tin
Contact Resistance	20 mΩ
Country of Origin	JP
Current Rating	1 A
Depth	3.6 mm
Flammability Rating	UL94 V-0
Housing Color	Natural
Housing Material	Nylon
Insulation Resistance	100 MΩ
Lead Free	Lead Free
Lead Pitch	1 mm
Length	26.6 mm
Max Operating Temperature	85 °C
Min Operating Temperature	-40 °C
Mount	Surface Mount
Number of Circuits	20
Number of Contacts	20
Number of Positions	20
Number of Rows	1
Orientation	Vertical
Packaging	Cut Tape
Pitch	1 mm
RoHS	Compliant
Termination	Solder
Voltage Rating	125 V
Voltage Rating (DC)	125 V
Win Source Part Number	1204966-526102071
Categories	FFC,FPC(FlatFlexible)Connectors
Manufacturer	Molex, LLC
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 526102071 CAD Model

Description

This FFC/FPC connector from Molex, LLC is a reliable and efficient solution for your electronic needs.

Pitch: 1 mm
Positions: 20
Rows: 1
Housing Material: Nylon
Actuator Material: Polyphenylene
Contact Material: Bronze
Contact Plating: Tin
Voltage Rating: 125 V
Current Rating: 1 A
Contact Resistance: 20 mΩ
Insulation Resistance: 100 MΩ
Orientation: Vertical
Length: 26.6 mm
Depth: 3.6 mm
Lead-Free: Yes
RoHS Compliant: Yes
Mounting: Surface Mount
