Same model may have multiple batches, images only for reference.

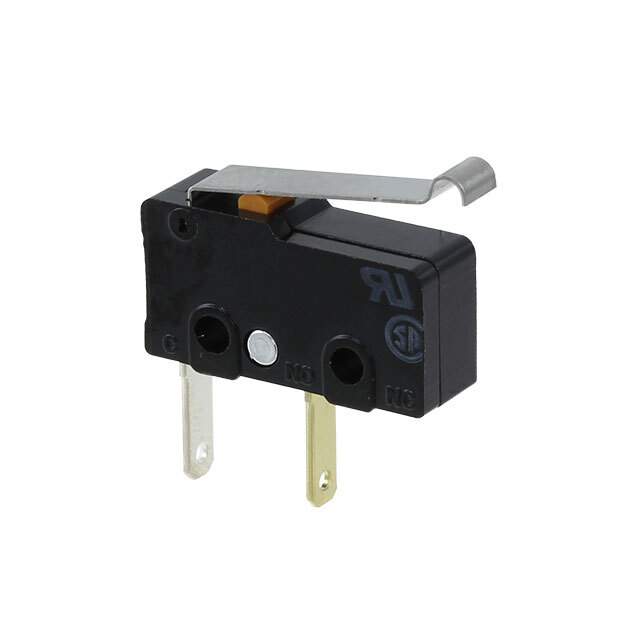

SS-01GL13-E-3T Real Image
Same model may have multiple batches, images only for reference.

SS-01GL13-E-3T

Part No SS-01GL13-E-3T
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP SPST-NO 100MA 125V / Switch SPST-NO Chassis Mount
Datasheet
SS-01GL13-E-3T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP40
Operating Force 8.158gf
Release Force 1.020gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.420" (10.7mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01GL
Other Names SS01GL13E3TBYOMI,SS01GL13E3T,-SS-01GL13-E-3T,Z5051
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233523-SS-01GL13-E-3T
Ultra Librarian 3D Model Ultra Librarian SS-01GL13-E-3T CAD Model

Description

The 1233523-SS-01GL13-E-3T is a limit switch from Omron that is a part of the SS series.

  • Termination Style: Quick Connect - 0.110 inches or 2.8 mm
  • Ingress Protection: IP40
  • Voltage Rating (AC): 125 V
  • Voltage Rating (DC): 30 V
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Lever with a Simulated Roller
  • Electrical Life: 200,000 Cycles
  • Mechanical Life: 30,000,000 Cycles
  • Operating Force: 8.158gf
  • Release Force: 1.020gf
  • Differential Travel: 0.031 inches or 0.8 mm
  • Overtravel: 0.047 inches or 1.2 mm
