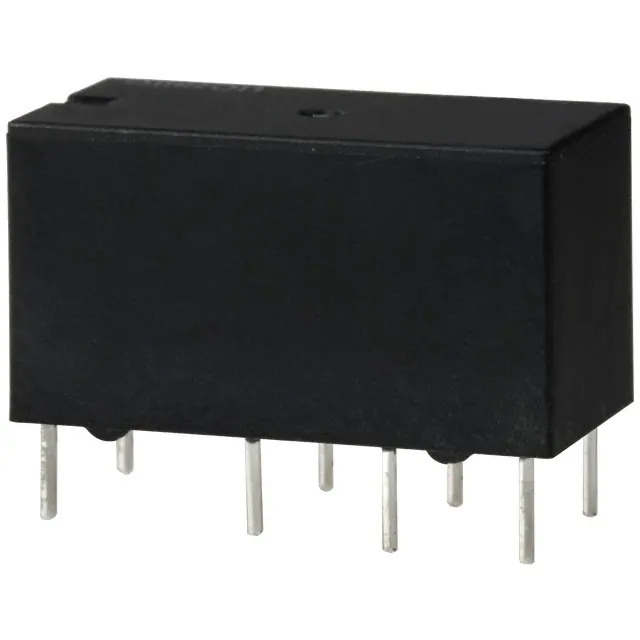

G5V-2-H1 DC24 Omron
Same model may have multiple batches, images only for reference.

G5V-2-H1 DC24

Part No G5V-2-H1 DC24
Manufacturer Omron
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 1A 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G5V-2
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1 A
Switching Voltage 125VAC, 125VDC - Max
Coil Current 8.3 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation -
Must Operate Voltage 18 VDC
Must Release Voltage 1.2 VDC
Operate Time 7 ms
Release Time 3 ms
Temperature Range - Operating -25°C ~ 70°C
Contact Material Silver (Ag), Gold (Au)
Relay Type General Purpose
Coil Resistance 2.88 kOhms
Base Product Number G5V
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1373495-G5V-2-H1 DC24
Ultra Librarian 3D Model Ultra Librarian G5V-2-H1 DC24 CAD Model

Description

The Omron G5V-2-H1 DC24 is a signal relay designed for various electronic applications.

  • Contact Form: DPDT (2 Form C)
  • Contact Rating: 1A
  • Switching Voltage: 125VAC and 125VDC
  • Coil Voltage: 24VDC
  • Coil Current: 8.3mA
  • Rating: Sealed and fully protected
  • Operate Time: 7ms
  • Release Time: 3ms
  • Mounting Type: Through-hole
  • Termination Style: PC pin
  • Series: G5V-2
  • Manufacturer: Omron
