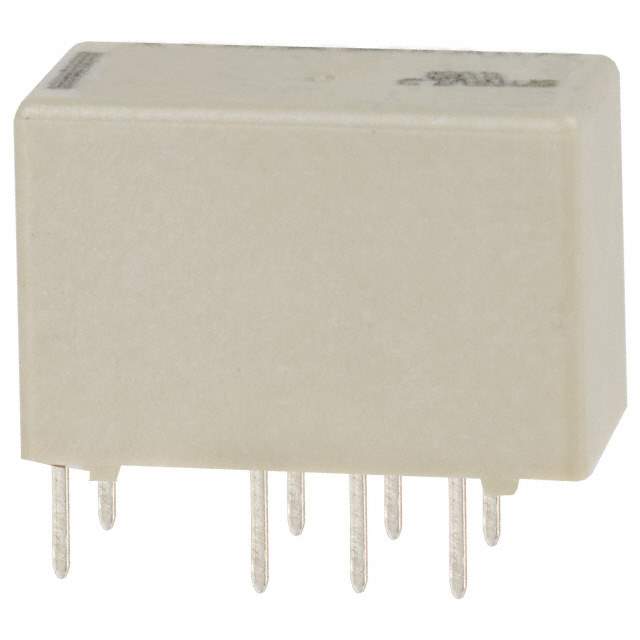

V23079C1103B301 Real Image
Same model may have multiple batches, images only for reference.

V23079C1103B301

Part No V23079C1103B301
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 2A 12VDC / General Purpose Relay DPDT (2 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Signal Relays, Up to 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series V23079, AXICOM
Package Tube
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 5.8 mA
Coil Type Latching, Single Coil
Termination Style PC Pin
Must Operate Voltage 9 VDC
Operate Time 4 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi), Gold (Au)
Relay Type General Purpose
Coil Resistance 2.06 kOhms
Base Product Number V23079
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1315654-V23079C1103B301
Ultra Librarian 3D Model Ultra Librarian V23079C1103B301 CAD Model

Description

The V23079C1103B301 is a signal relay that belongs to the V23079, AXICOM series from TE Connectivity Potter & Brumfield Relays.

  • Contact Form: DPDT (2 Form C)
  • Contact Rating (Current): 2A
  • Switching Voltage: 250VAC, 220VDC - Max
  • Win Source Part Number: 1315654-V23079C1103B301
  • Must Operate Voltage: 9VDC
  • Coil Resistance: 2.06 kOhms
  • Coil Current: 5.8 mA
  • Coil Voltage: 12VDC
  • Operate Time: 4 ms
  • Release Time: 4 ms
