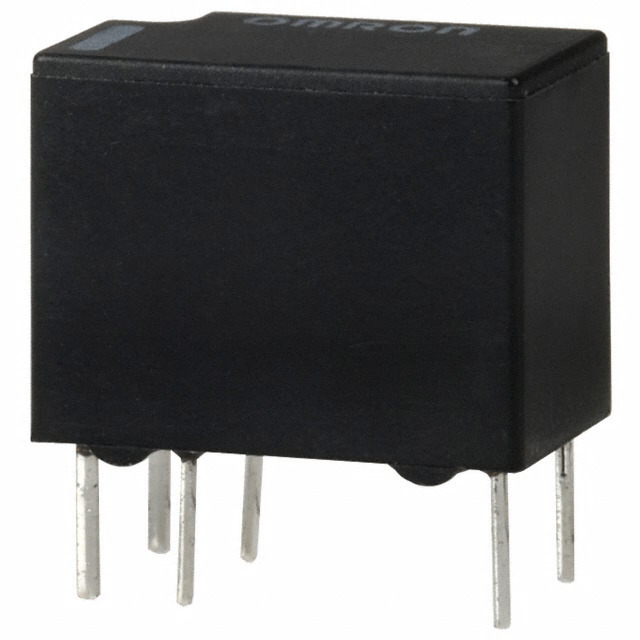

G5V-1-DC24 Omron G5V-1-DC24 label picture G5V-1-DC24 real image21381
Same model may have multiple batches, images only for reference.
G5V-1-DC24 Omron G5V-1-DC24 label picture G5V-1-DC24 real image21381
G5V-1-DC24 Omron G5V-1-DC24 label picture G5V-1-DC24 real image21381
Same model may have multiple batches, images only for reference.

G5V-1-DC24

Part No G5V-1-DC24
Manufacturer Omron
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE SPDT 1A 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Omron Electronics Inc-EMC Div
Packaging Tube
Mounting Style Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 1A
Switching Voltage 125VAC, 60VDC - Max
Coil Current 6.3mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 19.2 VDC
Must Release Voltage 2.4 VDC
Operate Time 5ms
Release Time 5ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver (Ag), Gold (Au)
Relay Type General Purpose
Coil Resistance 3.84 kOhms
Manufacturer Pack Quantity 500
MSL Level Not Applicable
Win Source Part Number 759405-G5V-1-DC24
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian G5V-1-DC24 CAD Model

Description

The G5V-1-DC24 is a general purpose relay manufactured by Omron Electronics Inc-EMC Div.

  • Supply and Demand Status: Limited
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver (Ag), Gold (Au)
  • Coil Voltage: 24VDC
  • Coil Resistance: 3.84 kOhms
  • Coil Current: 6.3mA
  • Switching Voltage: 125VAC, 60VDC - Max
  • Contact Rating (Current): 1A
  • Operating Temperature Range: -40°C to 70°C
