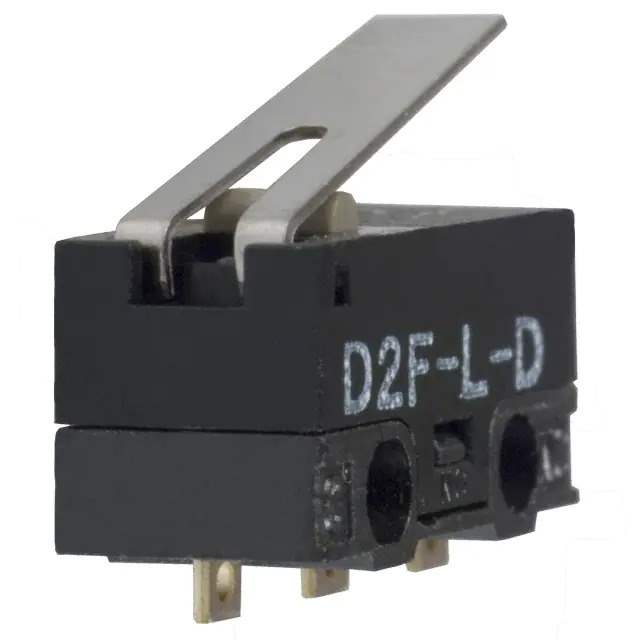

D2F-L-D Real Image
Same model may have multiple batches, images only for reference.

D2F-L-D

Part No D2F-L-D
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 3A 125V / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron
Series D2F
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC), 2A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 80gf
Release Force 5.099gf
Operating Position 0.268" (6.8mm)
Differential Travel 0.020" (0.5mm)
Overtravel 0.022" (0.55mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 30,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2F
Standard Package 1,000 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 868011-D2F-L-D
Ultra Librarian 3D Model Ultra Librarian D2F-L-D CAD Model

Description

The D2F-L-D is a limit switch from Omron's D2F series. It is a SPDT switch with a current rating of 3A (AC) and 2A (DC). Omron

  • Current Rating (AC): 3A
  • Current Rating (DC): 2A
  • Switch Type: SPDT
  • Termination Style: Solder Lug
  • Mounting Type: Chassis Mount
  • Ingress Protection: IP40
  • Voltage Rating (AC): 125VAC
  • Voltage Rating (DC): 30VDC
  • Operating Force: 80gf
  • Mechanical Life: 1,000,000 cycles
  • Operating Temperature: -40°C to 85°C
