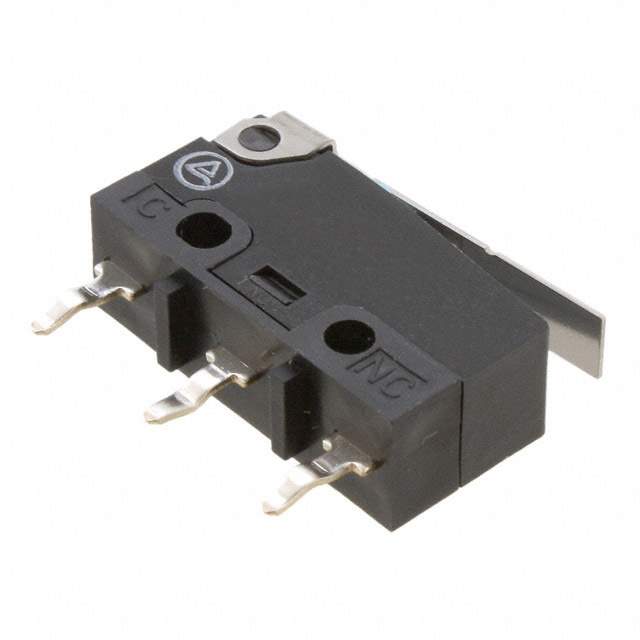

SSG-01P Real Image
Same model may have multiple batches, images only for reference.

SSG-01P

Part No SSG-01P
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SUBMINIATURE BASIC SWITCH / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SSG
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 153gf
Release Force 25gf
Pretravel 0.025" (0.65mm)
Differential Travel 0.004" (0.1mm)
Overtravel 0.015" (0.4mm)
Temperature Range - Operating -25°C ~ 125°C
Operating Position 0.465" (11.8mm)
Electrical Life 200,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SSG-01
Other Names SSG01PBYOMZ,SSG01P,SSG-01P BY OMZ
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233451-SSG-01P
Ultra Librarian 3D Model Ultra Librarian SSG-01P CAD Model

Description

The Omron Electronics Inc-EMC Div SSG-01P is a limit switch with a SPDT circuit and an on-mom switch function.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Voltage Rating: 125V AC and 30V DC
  • Actuator Type: Round (pin plunger)
  • Pretravel: 0.025" (0.65mm)
  • Mechanical Life: 10,000,000 cycles
  • Electrical Life: 200,000 cycles
  • Release Force: 25gf
  • Operating Force: 153gf
  • Ingress Protection: IP40
  • Mounting: Chassis Mounted
  • Standard Package: 500
  • Temperature Range: -25°C ~ 125°C
