Products specifications

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP40
Operating Force 50gf
Release Force 6.118gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.420" (10.7mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-5
Other Names SW144,SS5GL13T
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233560-SS-5GL13T
Ultra Librarian 3D Model Ultra Librarian SS-5GL13T CAD Model

Description

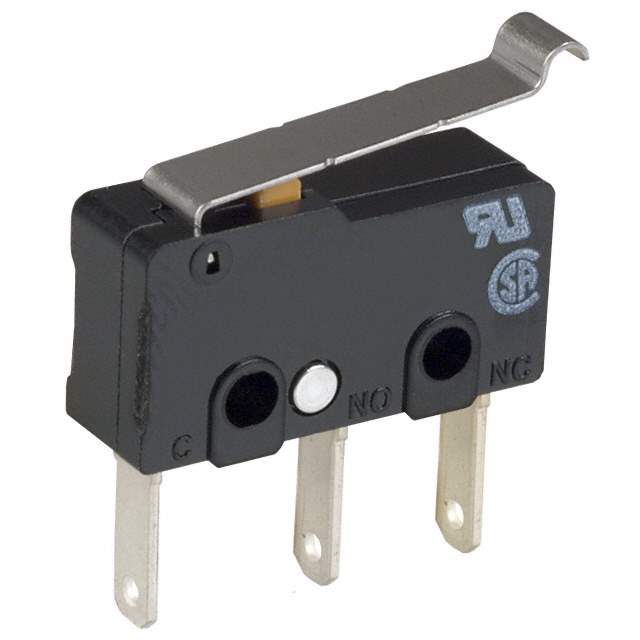

The SS-5GL13T is a SPDT (Single Pole Double Throw) limit switch from Omron Electronics Inc-EMC Div that comes with a simulated roller and lever actuator type.

  • Termination Style: Quick Connect
  • Voltage Rating: 125 V AC
  • Switch Function: On-Mom
  • Operating Force: 50gf
  • Release Force: 6.118gf
  • Mechanical Life: 30,000,000 cycles
  • Electrical Life: 200,000 cycles
  • Ingress Protection Rating: IP40
  • Differential Travel: 0.031" (0.8mm)
  • Overtravel: 0.047" (1.2mm)
  • Operating Position: 0.420" (10.7mm)
  • Mounting Type: Chassis Mount
  • Temperature Range: -25°C to 85°C
  • Actuator Type: Simulated roller and lever
  • Contact Pitch: 0.110" (2.8mm)
  • Circuit: SPDT
