The NXP S912ZVMC12F3WKHR is a high-performance microcontroller tailored for automotive and industrial applications. It is part of the S12 MagniV family, which integrates a sophisticated MCU with smart MOSFET drivers to deliver a compact, efficient, and versatile solution for controlling a wide range of motor types.

Key Features:

• Advanced MCU Core: At the heart of the microcontroller is a 16-bit S12 core that operates at up to 50 MHz, providing the computational power needed for complex control algorithms and real-time processing.
• Integrated MOSFET Drivers: The S912ZVMC12F3WKHR includes integrated MOSFET pre-drivers, making it ideal for directly driving motors in applications such as automotive power steering, engine cooling fans, and wiper systems.
• Memory: Equipped with 128 KB of flash memory and 8 KB of RAM, this microcontroller can handle robust applications and store essential programs and data.
• Analog-to-Digital Converter (ADC): A 12-bit ADC with multiple channels allows for precise measurement of analog signals, crucial for sensor interfacing and real-time monitoring.
• Timers and Communication Interfaces: It features a range of timers, including PWM modules for motor control and communication interfaces such as LIN, SPI, and SCI for connectivity with other devices and networks.
• Temperature Range: Designed to withstand harsh environments, it operates within a temperature range of -40°C to 125°C, ensuring reliability and performance in extreme conditions.

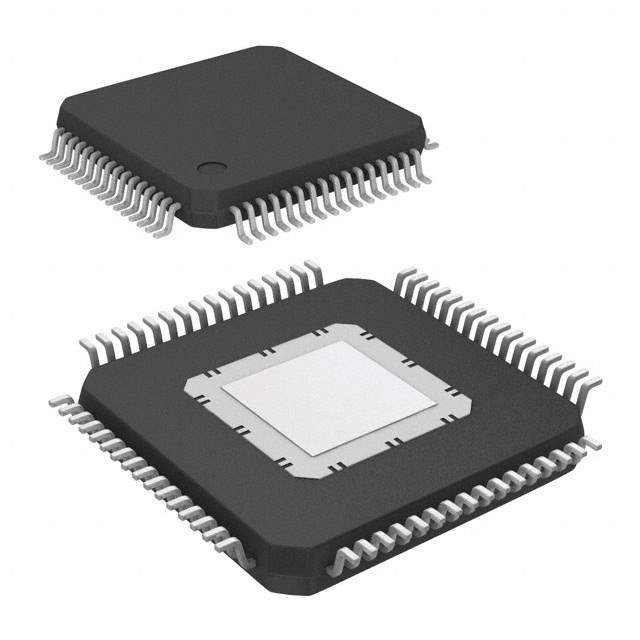

• Package: The device comes in a 64-pin LQFP package, which is suitable for space-constrained applications while providing enough pins for the required peripherals and I/O connections.

Applications:

The NXP S912ZVMC12F3WKHR is engineered for use in a variety of applications where precise motor control and robust performance are essential. It is commonly used in:

• Automotive systems such as electric power steering, engine cooling fans, and wiper controls
• Industrial automation for controlling actuators, pumps, and fans
• Robotics and drones where compact and efficient motor control is necessary

With its integration of MCU and pre-drivers, the NXP S912ZVMC12F3WKHR represents a cost-effective and space-saving solution for designers looking to streamline their motor control applications.
