Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 2
STAND-OFF Voltage (Vwm) 24V (Max)
Minimum Breakdown Voltage 26.2V
Max Clamping Voltage 41V
Peak Pulse Current(Ippm) 5A (8/20μs)
Power Dissipation - Pd 230W
Applications Automotive, CAN
Capacitance @ Frequency 25pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TA)
Mounting SMD (SMT)
Case / Package SOT-23 (TO-236AB)
Win Source Part Number 094927-PESD2CAN
Family Name PESD2CAN
Introduction Date December 22, 2006
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Automotive, Communications & Networking, Industrial
Ultra Librarian 3D Model Ultra Librarian PESD2CAN CAD Model

Description

Overview of NXP's PESD2CAN ESD Protection Device

The PESD2CAN is a state-of-the-art ElectroStatic Discharge (ESD) protection component designed by NXP Semiconductors, specifically tailored for safeguarding the CAN (Controller Area Network) bus lines from harmful ESD pulses. This device is an essential component for automotive and industrial applications where reliable communication over the CAN bus is critical for system performance and safety.

Key Features

  • ESD Protection: The PESD2CAN offers robust protection against ESD, with an electrostatic discharge capability of up to ±30 kV according to the IEC 61000-4-2 standard, ensuring the integrity of the communication lines under harsh electrical environments.
  • Low Capacitance: With a very low line capacitance, the device minimizes signal attenuation, allowing for high-speed data transmission without compromising signal integrity on the CAN bus.
  • Bi-directional Protection: The device features bi-directional ESD protection for both the CANH and CANL lines, providing comprehensive coverage against transient voltage spikes in either direction.

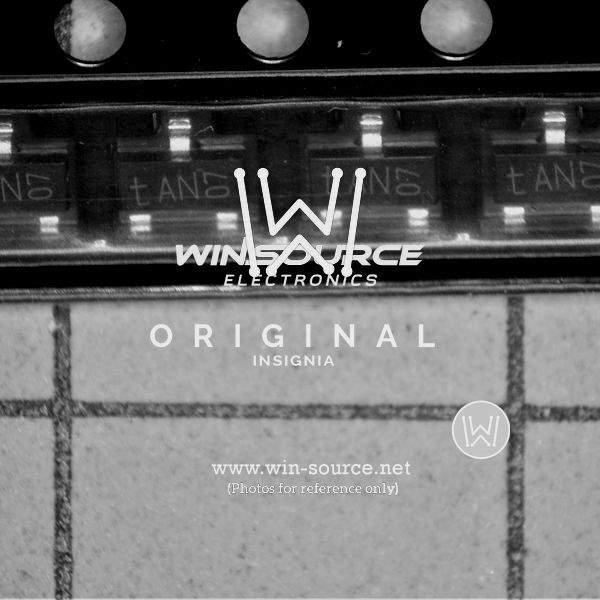

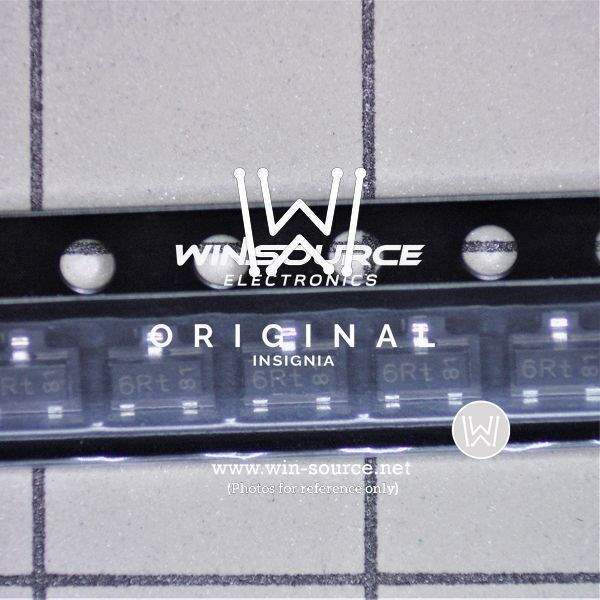

  • Small Package: The PESD2CAN is available in a small SOT23 package, which is ideal for space-constrained applications, allowing designers to incorporate ESD protection without the need for significant PCB real estate.

Applications

The PESD2CAN is particularly well-suited for a variety of applications that require reliable ESD protection for CAN bus lines. These include:

  • Automotive networks such as in-vehicle infotainment, body control modules, and engine management systems.
  • Industrial control systems where CAN is used for sensor and actuator networking.
  • Automation systems requiring robust communication protocols.
  • Any application where the CAN interface is exposed to the risk of ESD events.

Why Choose PESD2CAN?

Designers and engineers opt for the NXP PESD2CAN due to its exceptional protection capabilities, ensuring long-term reliability of electronic systems. Its low capacitance feature makes it an excellent choice for high-speed data applications, while the compact packaging allows for easy integration into existing designs. By choosing PESD2CAN, you are investing in a proven solution from NXP, a leader in ESD protection technology, to safeguard your CAN bus applications against the challenges posed by electrostatic discharge.
