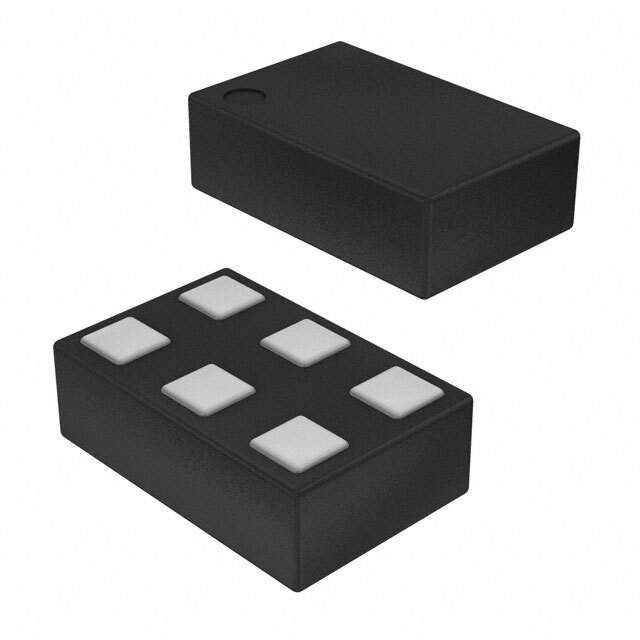

SP1012-05WTG Real Image
Same model may have multiple batches, images only for reference.

SP1012-05WTG

Part No SP1012-05WTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 5V 12.3V 6FLIPCHIP / SP1012 Series 6.5pF, 15kV Bidirectional TVS Array
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Type Zener
Bidirectional Channels 5
Voltage - Reverse Standoff (Typ) 5V (Maximum)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Maximum) at Ipp 12.3V
Current - Peak Pulse (10/1000μs) 3A (8/20μs)
Power Line Protection No
Applications Use For General
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 6-XFDFN, FC
Supplier Device Package 6-FLIPCHIP (0.94x0.61)
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800507-SP1012-05WTG
Ultra Librarian 3D Model Ultra Librarian SP1012-05WTG CAD Model

Description

The SP1012-05WTG is a reliable electronic component manufactured by Littelfuse Inc.

  • Mounting Style: SMD
  • Channels: Bidirectional, 5
  • Voltage Reverse Standoff (Maximum): 5V
  • Voltage Breakdown: 6V
  • Current Peak Pulse: 3A (8/20μs)
  • Supplier Device Package: 6-FLIPCHIP (0.94x0.61)
  • Temperature Range: -40°C ~ 125°C
  • Voltage Clamping (maximum) @ Ipp: 12.3V
  • Manufacturer Pack Quantity: 5,000
