Same model may have multiple batches, images only for reference.

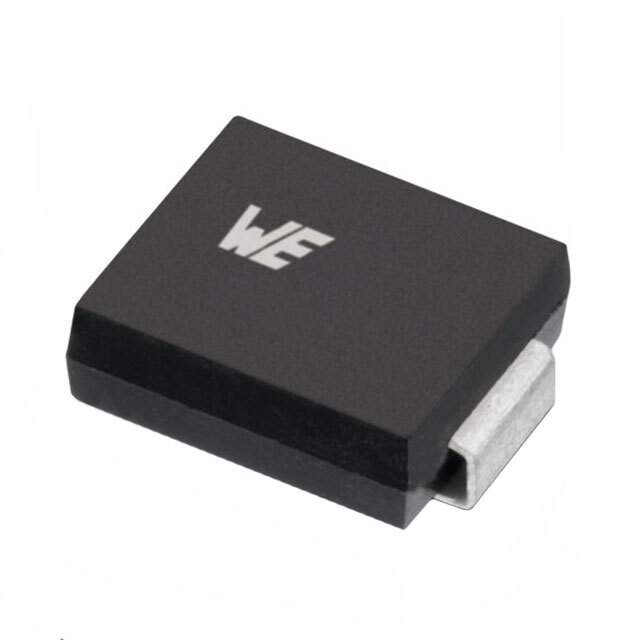

824520241 Real Image
Same model may have multiple batches, images only for reference.

824520241

Part No 824520241
Manufacturer Wurth Electronics Inc
Catalog TVS - Diodes
Description TVS DIODE 24V 38.9V DO214AA / WE-TVSP Power TVS Diode
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V (Maximum)
Voltage - Breakdown (Min) 28.1V (Typ)
Voltage - Clamping (Maximum) at Ipp 38.9V
Current - Peak Pulse (10/1000μs) 15.5A
Power - Peak Pulse 600W
Power Line Protection No
Applications Use For General
Temperature Range - Operating -65°C ~ 150°C
Mounting Style SMD
Manufacturer Package DO-214AA, SMB
Supplier Device Package DO-214AA
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804007-824520241
Ultra Librarian 3D Model Ultra Librarian 824520241 CAD Model

Description

The Würth Elektronik 804007-824520241 is a Zener type diode with SMD mounting style.

  • Channel: Unidirectional
  • Voltage-Reverse Standoff: 24V (maximum)
  • Voltage Breakdown: 28.1V (typ)
  • Current-Peak Pulse (10/1000μs): 15.5A
  • Peak Pulse Power: 600W
  • Supplier Device Package: DO-214AA
  • Temperature Range: -65°C to 150°C
  • Halogen-Free: Compliant
  • Popularity: Medium
