Same model may have multiple batches, images only for reference.

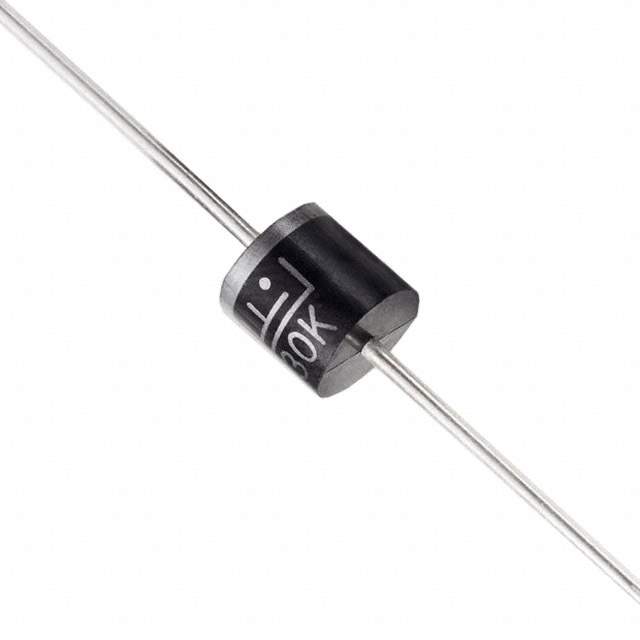

15KPA60A Real Image
Same model may have multiple batches, images only for reference.

15KPA60A

Part No 15KPA60A
Manufacturer MDE Semiconductor, Inc.
Catalog TVS - Diodes
Description TVS DIODE UP 60VRWM 97.4VC  /  97.4V Clamp 155A Ipp Tvs Diode Through Hole P600
Datasheet
15KPA60A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr MDE Semiconductor Inc
Series 15KPA
Package Bulk
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 60V
Voltage - Breakdown (Min) 67V
Voltage - Clamping (Max) @ Ipp 97.4V
Current - Peak Pulse (10/1000µs) 155A
Power - Peak Pulse 15000W (15kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case P600, Axial
Supplier Device Package P600
MSL Level 1 (Unlimited)
REACH Status REACH info available upon request
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3811-15KPA60A
Standard Package 200
Win Source Part Number 1227184-15KPA60A
Ultra Librarian 3D Model Ultra Librarian 15KPA60A CAD Model

Description

The 15KPA60A from MDE Semiconductor Inc is a Zener diode that comes in a bulk package. It has a reverse standoff voltage of 60V and a breakdown voltage of 67V. The diode has a power rating of 15kW and can handle a peak pulse current of 155A. The device has a capacitance of zero and is part of the category of circuit protection TVS diodes. The device is available in a through-hole mounting type and has a P600 axial package. The temperature range of the device is from -55°C to 175°C.
