The PCF8577CT/3,118 is a versatile LCD driver integrated circuit produced by NXP Semiconductors, designed to drive dot matrix liquid crystal displays (LCDs) with low multiplex rates. It is a part of the PCF8577 series, which is known for its efficiency and reliability in controlling LCDs in a variety of applications.

Key Features

• I2C-Bus Interface: The device features a two-wire I2C-bus interface, which simplifies connection to microcontrollers and allows for easy control of the LCD with minimal wiring.
• Multiple Display Modes: It supports multiple display formats, including static, 2, 3, or 4 backplane multiplexing, providing flexibility for a wide range of LCD panel types and configurations.
• Extended Temperature Range: The IC operates over an extended temperature range, making it suitable for industrial applications and other environments with varying temperatures.
• Low Power Consumption: Designed with power efficiency in mind, the PCF8577CT/3,118 is ideal for battery-operated devices, as it helps to extend battery life by consuming minimal power.
• Segment Drive Capability: It can drive up to 32 segments, allowing for the display of a significant amount of information on the LCD.

Applications

The PCF8577CT/3,118 is commonly used in a variety of applications where a reliable and efficient LCD display driver is required. These include:

• Consumer Electronics
• Automotive Instrument Clusters
• Industrial Control Panels
• Medical Equipment
• Point of Sale Terminals

Technical Specifications

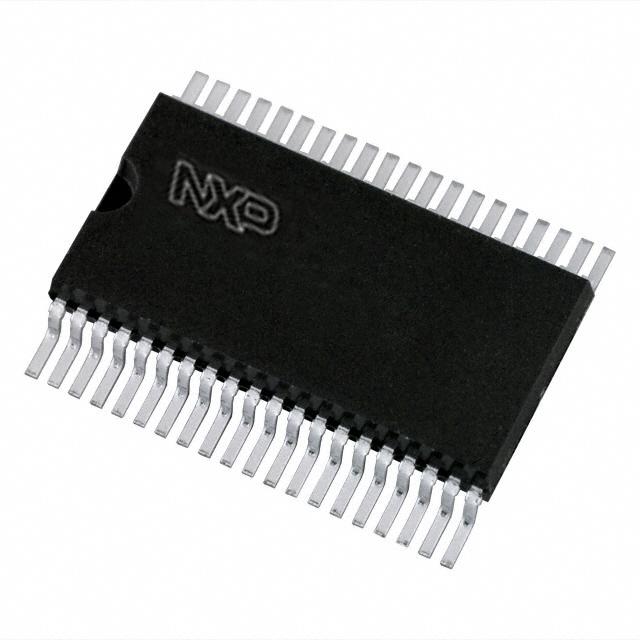

The PCF8577CT/3,118 is offered in a thin shrink small outline package (SSOP) and is designed to meet the demands of modern electronic displays:

• Package: SSOP-40
• Supply Voltage: 2.5V to 6V
• Operating Temperature: -40°C to +85°C

With its robust feature set and NXP Semiconductors' reputation for high-quality components, the PCF8577CT/3,118 is an excellent choice for developers and manufacturers seeking to create sophisticated LCD interfaces in their products.
