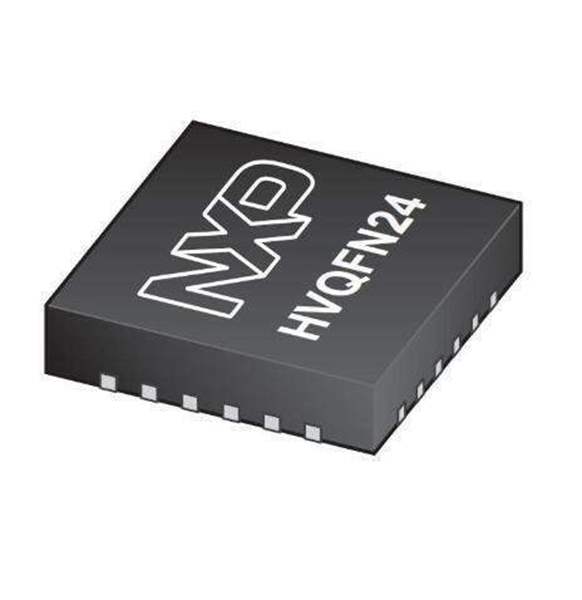

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer NXP USA Inc.
Category RF and Wireless > RF Amplifiers
Operating Frequency 2.4 GHz to 2.5 GHz
Operating Supply Voltage 28 V
Operating Supply Current 75 mA
Gain 29.7 dB
Type Power Amplifiers
Mounting Style SMD/SMT
Package / Case PQFN-24
Technology Si
Ultra Librarian 3D Model Ultra Librarian MHT2012NT1 CAD Model

Description

Features

• High gain simplifies layout and reduced PCB area compared to a discrete design

• Qualified up to a maximum of 32 VDD operation

• On--chip input and interstage matching (50 ohm input)

• Integrated quiescent current temperature compensation with enable/disable function (1)

• Integrated ESD protection

• 150°C case and junction temperature rating

• Ideal as a driver for high power RF energy applications
