Products specifications

Package Bulk
Product Status Active
Type TxRx + MCU
RF Family/Standard 802.15.4, Bluetooth
Protocol Bluetooth v5.3, Matter, Thread, Zigbee®
Modulation 2FSK, GFSK, GMSK, MSK
Data Rate (Max) 2Mbps
Power - Output 10dBm
Sensitivity -106dBm
Memory Size 1MB Flash, 128kB RAM
Serial Interfaces ADC, CANbus, GPIO, I2C, SPI, UART
GPIO 29
Voltage - Supply 1.8V ~ 1.98V
Current - Receiving 3.69mA ~ 10.01mA
Current - Transmitting 3.75mA ~ 20.99mA
Operating Temperature -40°C ~ 125°C (TA)
Grade -
Mounting Type Surface Mount, Wettable Flank

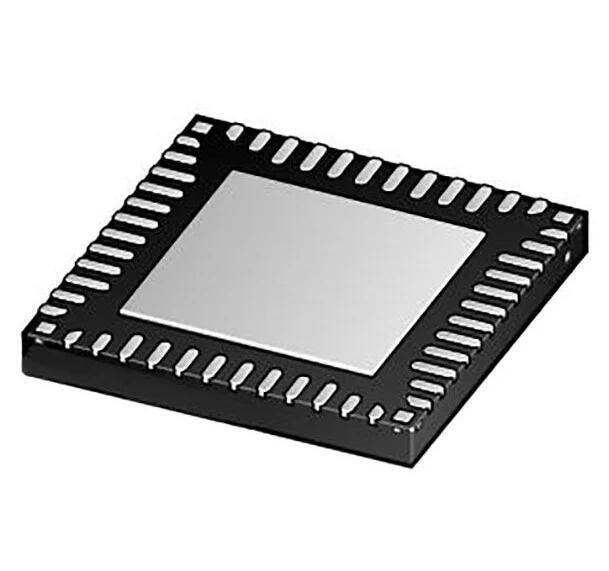

Package / Case 48-VFQFN Exposed Pad
Supplier Device Package 48-HVQFN (7x7)
Ultra Librarian 3D Model Ultra Librarian MCXW716CMFTAT CAD Model

Description

IC RF TxRx + MCU 802.15.4, Bluetooth Bluetooth v5.3, Matter, Thread, Zigbee® 48-VFQFN Exposed Pad
