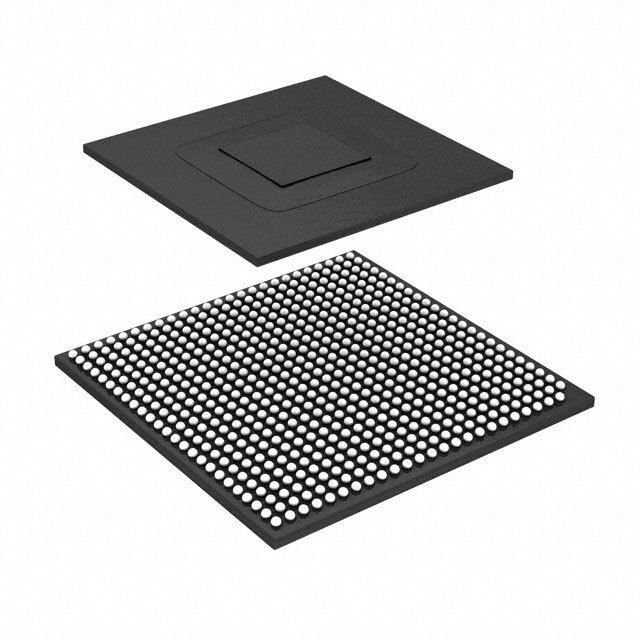

MCIMX6S5EVM10ADR

Part No MCIMX6S5EVM10ADR
Manufacturer NXP / Nexperia
Catalog Embedded - Microprocessors
Description IC MPU I.MX6S 1GHZ 624MAPBGA
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microprocessors
Mfr NXP USA Inc.
Series i.MX6S
Package Tape & Reel
Product Status Active
Core Processor ARM® Cortex®-A9
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 1GHz
Co-Processors/DSP Multimedia; NEON™ SIMD
RAM Controllers LPDDR2, LVDDR3, DDR3
Graphics Acceleration Yes
Display & Interface Controllers Keypad, LCD
Ethernet 10/100/1000Mbps (1)
SATA -
USB USB 2.0 + PHY (4)
Voltage - I/O 1.8V, 2.5V, 2.8V, 3.3V
Temperature Range - Operating -20°C ~ 105°C (TJ)
Security Features ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection
Mounting Type Surface Mount
Package / Case 624-LFBGA
Supplier Device Package 624-MAPBGA (21x21)
Additional Interfaces CAN, I²C, I²S, MMC/SD/SDIO, SAI, SPI, SSI, UART
Base Product Number MCIMX6
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0001
Win Source Part Number 1379129-MCIMX6S5EVM10ADR
Ultra Librarian 3D Model Ultra Librarian MCIMX6S5EVM10ADR CAD Model

Description

The NXP MCIMX6S5EVM10ADR is a cutting-edge processor that belongs to the i.MX 6Solo family of multimedia applications processors. This product offers a high-performance, scalable, multicore platform that is designed to deliver a rich multimedia experience and reliable performance for a wide range of applications, including consumer electronics, automotive infotainment, and industrial control systems.

The i.MX 6Solo processors are built on ARM® Cortex®-A9 architecture, which provides an optimal balance between power efficiency and processing power. The MCIMX6S5EVM10ADR specifically features a single ARM Cortex-A9 core running at a speed of 1 GHz, making it a robust solution for systems that require a compact form factor without compromising on computational capability.

This processor is equipped with a range of integrated features to support high-quality graphics and video performance. It includes a 3D graphics processing unit (GPU) and a 2D composition engine, which enable smooth rendering of complex graphics and user interfaces. The processor also supports full HD video processing capabilities, making it suitable for applications that require high-definition video playback and streaming.

Connectivity is a key aspect of the MCIMX6S5EVM10ADR, offering a variety of interfaces such as HDMI, LVDS, PCI Express®, and Gigabit Ethernet. This ensures that the processor can easily be integrated into a broad range of systems and connect with various peripherals and networks. Additionally, the processor features an integrated power management module, which contributes to its overall energy efficiency.

The NXP MCIMX6S5EVM10ADR is designed with long-term availability and support in mind, making it a reliable choice for products with extended life cycles. Its robust design and comprehensive feature set make it an ideal choice for designers looking to create innovative and powerful devices that stand the test of time.

With its combination of performance, multimedia capabilities, and connectivity options, the NXP MCIMX6S5EVM10ADR is a versatile and powerful component that can serve as the heart of a wide array of electronic devices.
