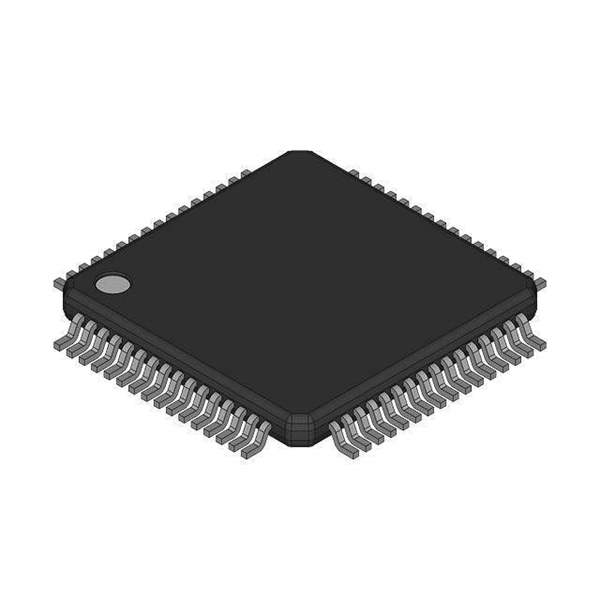

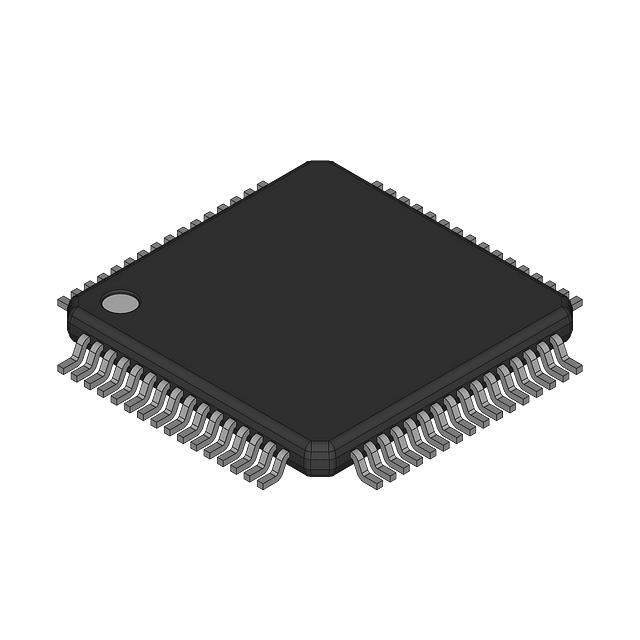

Product Overview: NXP MC908GZ60CFUE Microcontroller

The NXP MC908GZ60CFUE is a high-performance microcontroller that is a part of the MC9S08 family, known for its versatility and efficiency in managing a wide range of embedded applications. This 8-bit microcontroller integrates a wealth of features that make it a suitable choice for automotive, industrial, and consumer markets where reliable and robust performance is essential.

At the heart of the MC908GZ60CFUE is a HCS08 core that operates at a maximum frequency of 40 MHz, providing a perfect balance between speed and power consumption. The device comes with 60KB of flash memory, which is ample space for complex program code, and 2KB of RAM for temporary data storage. The flash memory is highly reliable, with the capability for up to 100,000 write/erase cycles, ensuring long-term stability of applications.

One of the standout features of this microcontroller is its rich set of peripherals. It includes an 8-channel, 10-bit Analog-to-Digital Converter (ADC) which allows the microcontroller to interface with analog sensors and transducers, converting their outputs into digital values for processing. Additionally, it offers two Serial Communications Interfaces (SCI), which enable easy serial communication with other devices in a system, and a Serial Peripheral Interface (SPI) for high-speed synchronous data transfer.

For enhanced user interaction, the MC908GZ60CFUE provides an 8-channel Timer/Pulse Width Modulator (TPM) module, which is excellent for precise timing operations, motor control, and PWM applications. The microcontroller also features an I2C bus interface for multi-master communication, which is essential for connecting to other ICs and sensors in a complex embedded system.

The device operates over a wide voltage range of 2.7V to 5.5V, accommodating various power supply conditions, and is available in a robust 64-QFP (Quad Flat Package) form factor. The MC908GZ60CFUE also boasts a comprehensive set of power-saving modes, which are crucial for battery-operated devices where energy efficiency is paramount.

In summary, the NXP MC908GZ60CFUE microcontroller is a powerful and feature-rich component that offers designers a flexible and cost-effective solution for a multitude of embedded applications. Its combination of processing power, memory capacity, and extensive peripheral set makes it a top choice for those seeking to develop sophisticated and reliable products.
