Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer NXP
Series HC11
Packaging Tube
Part Status Obsolete(EOL)
Core Processor HC11
Core Size 8-Bit
Speed 4MHz
Connectivity SCI, SPI
Peripherals POR, PWM, WDT
Number of I/O 62
Program Memory Size 24KB (24K x 8)
Program Memory Type One Time Programmable(OTP)
EEPROM Size 640 x 8
RAM Size 768 x 8
Supply Voltage 4.5 V ~ 5.5 V
Data Converters A/D 8x8b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 85°C (TA)
Package 84-LCC (J-Lead)
Manufacturer Package 84-PLCC (29.21x29.21)
Win Source Part Number 787931-MC711K4CFNE4
Popularity Medium
Supply and Demand Status Limited
Family Name MC711K4
Introduction Date September 28, 2005
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MC711K4CFNE4 CAD Model

Description

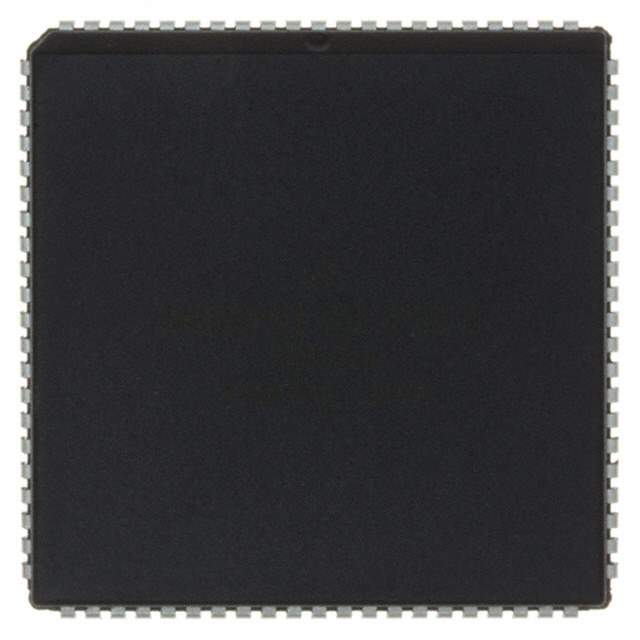

Introducing the NXP MC711K4CFNE4 Microcontroller

The NXP MC711K4CFNE4 is a robust and versatile microcontroller designed to cater to a wide range of industrial and automotive applications. This high-performance component is part of NXP's renowned MC711K4 series, known for their reliability and advanced features that make them an ideal choice for complex electronic systems.

At the heart of the MC711K4CFNE4 is a powerful HC11 core, which provides an excellent balance between speed and power consumption. This core operates at a frequency that ensures swift processing of instructions, which is critical for real-time applications. The microcontroller is equipped with 4KB of RAM, providing ample space for running applications and managing data efficiently.

The MC711K4CFNE4 also boasts 4KB of EEPROM, which offers non-volatile storage for critical data that must be preserved across power cycles. This feature is particularly useful for applications that require data retention without constant power supply, such as in remote sensing and data logging devices.

One of the standout features of the NXP MC711K4CFNE4 is its rich set of peripherals. It includes multiple channels of analog-to-digital converters (ADCs), which are essential for interfacing with various sensors and converting analog signals into digital data for processing. The microcontroller also offers serial communication interfaces, such as SPI and SCI, allowing for seamless integration with other components and systems.

For enhanced functionality, the MC711K4CFNE4 supports a wide operating voltage range, making it adaptable to various power supply conditions. Its robust design ensures that it can withstand harsh environments, which is particularly important for automotive applications where temperature and vibration can be extreme.

Developers will appreciate the comprehensive development support provided by NXP, which includes development tools, software libraries, and reference designs. This support helps to accelerate the design process and reduce time to market for products incorporating the MC711K4CFNE4.

In summary, the NXP MC711K4CFNE4 microcontroller is a highly capable component that offers a blend of performance, storage capabilities, and peripheral integration. It stands as a reliable choice for engineers looking to develop sophisticated and durable electronic systems.
