Overview of NXP's MC33972EWR2 Multiple Switch Detection Interface

The MC33972EWR2 is a sophisticated multiple switch detection interface designed by NXP Semiconductors, which provides an efficient solution for automotive and industrial applications requiring the monitoring of switch contacts. This versatile component is engineered to interface directly with the vehicle's microcontroller, simplifying the design process and reducing the overall system complexity.

Key Features

• Switch Detection: Capable of interfacing with up to 22 switch contacts, the MC33972EWR2 offers a robust switch detection interface that enhances the functionality of control systems.
• Wet/Dry Configuration: The device supports both wet and dry switch configurations, providing flexibility for various application needs. It can adapt to switches connected with or without pull-up resistors.
• SPI Interface: With a Serial Peripheral Interface (SPI), the MC33972EWR2 ensures a reliable and speedy communication channel to the host microcontroller.
• Diagnostic Features: It includes comprehensive diagnostics capabilities for open and short circuit detection, helping to ensure system reliability and safety.
• Low Current Consumption: Designed with power efficiency in mind, the device operates with low current consumption, which is critical for battery-operated systems.

Applications

The MC33972EWR2 is ideal for a wide range of applications, including:

• Automotive body control, such as door and window switches
• Industrial control systems
• Control panel interfaces
• Any system requiring multiple switch monitoring

Technical Specifications

Some of the technical specifications for the MC33972EWR2 include:

• Operating Voltage Range: 5.5V to 26V
• Temperature Range: -40°C to 125°C

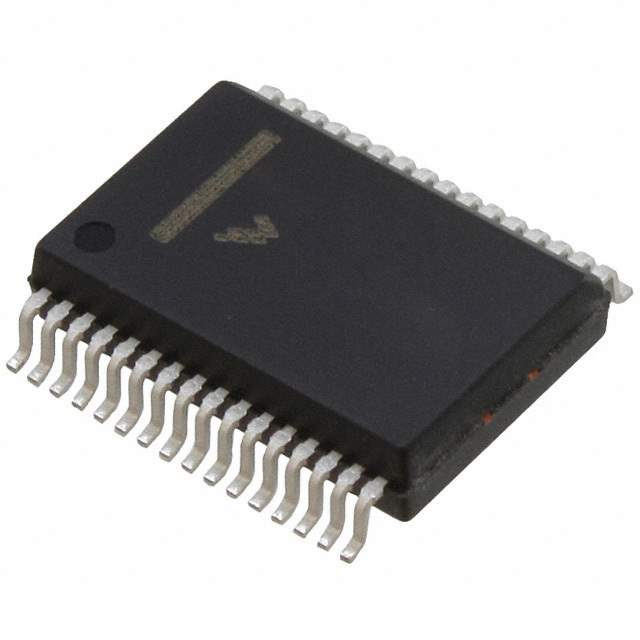

• Package: 32-SOIC Wide Body

Conclusion

The MC33972EWR2 from NXP is a highly integrated switch detection interface that offers robustness, flexibility, and ease of use for designers looking to monitor multiple switch states within their systems. Its combination of diagnostic features, low power consumption, and versatile interfacing options make it a valuable component for a variety of automotive and industrial applications.
