Product Overview: MC33887AVWR2 by NXP

The MC33887AVWR2 is a sophisticated motor driver IC produced by NXP Semiconductors, designed to efficiently control brushed DC motors. It is a versatile component that is essential for a wide range of applications, from automotive to industrial automation systems. This integrated circuit is known for its robustness and performance in controlling the direction and speed of motors.

Key Features

• High Output Drive Capability: The MC33887AVWR2 can deliver up to 5A of continuous current and peak currents up to 10A, making it suitable for driving a wide range of DC motors.
• Integrated Control Functions: It comes with comprehensive control features, including forward/reverse control, brake mode, and PWM control input for precise speed regulation.
• Protection Features: Equipped with multiple protection features such as over-current limiting, thermal shutdown, and under-voltage shutdown, ensuring safe and reliable operation under various conditions.
• Diagnostic Feedback: The device provides real-time diagnostic feedback through a status flag that indicates fault conditions, assisting in system monitoring and maintenance.

Applications

The MC33887AVWR2 is a highly adaptable driver IC that can be used in an array of applications. Its primary use is in the automotive sector for controlling mirrors, wipers, and other actuators. It is also well-suited for industrial applications, robotics, and any system requiring precise control of brushed DC motors.

Technical Specifications

• Supply Voltage Range: 5V to 28V
• Output Current: 5A continuous, 10A peak
• Control Interface: PWM and Direction Input
• Protection: Over-current, Thermal, Under-voltage

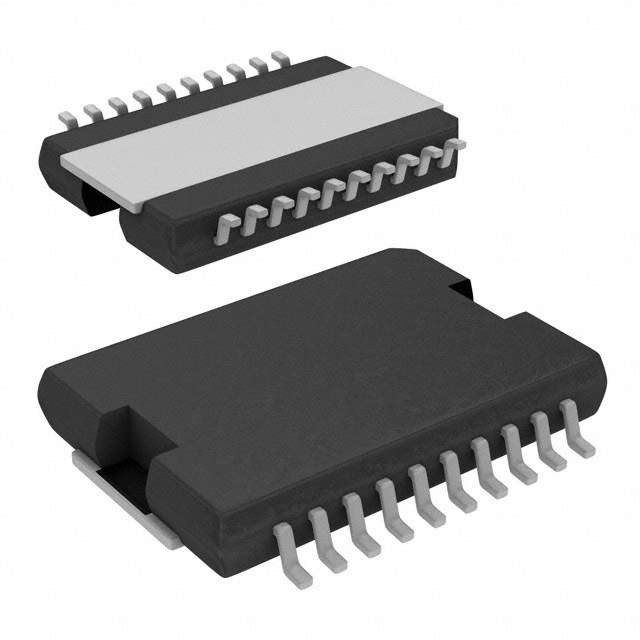

• Package: HSSOP with exposed thermal pad

Overall, the MC33887AVWR2 motor driver by NXP stands out with its high-performance capabilities and integrated features, making it a reliable choice for engineers and designers looking to incorporate motor control in their projects.
