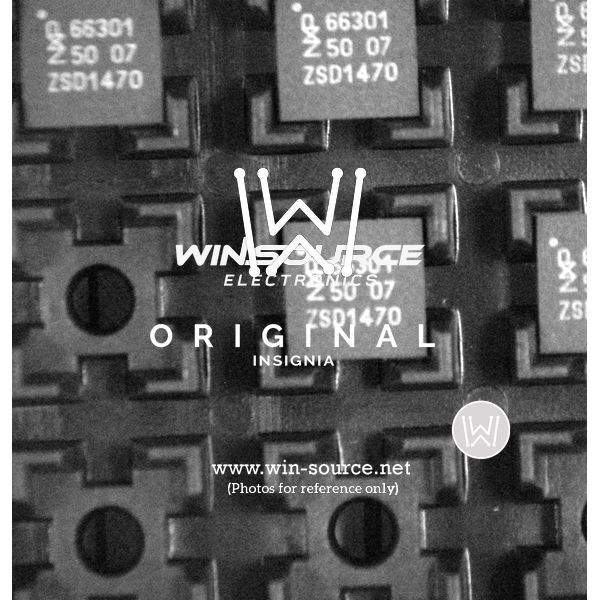

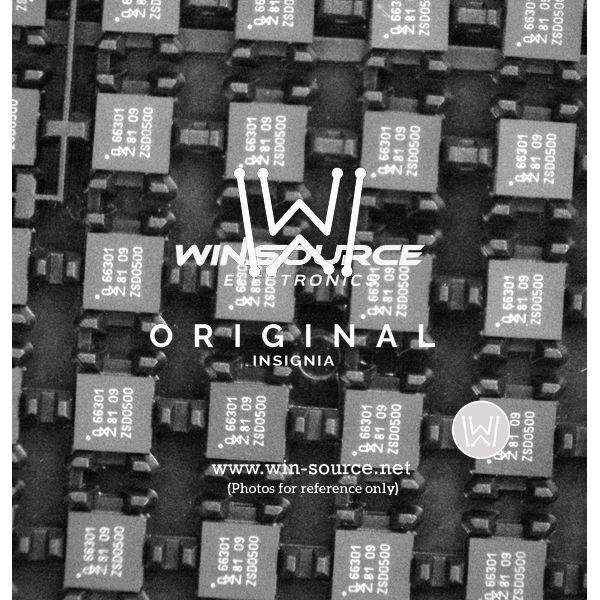

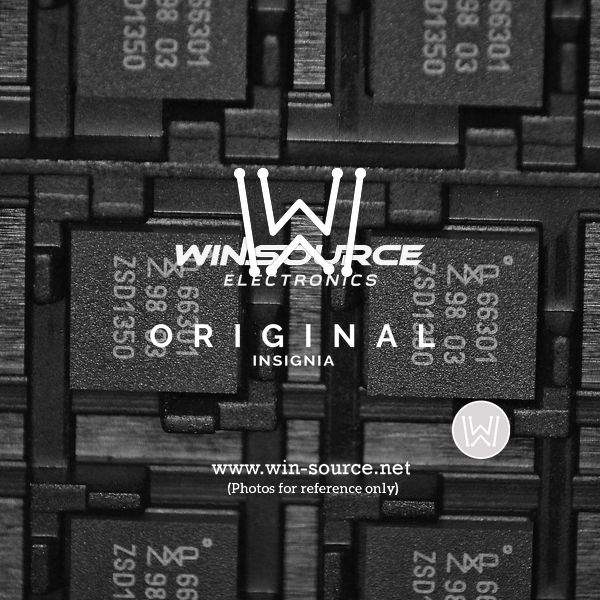

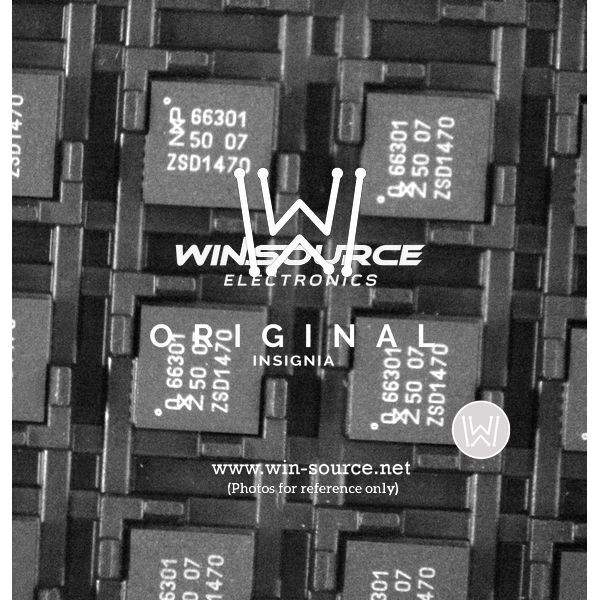

Product Overview: CLRC66301HN

The CLRC66301HN is a high-performance, multi-protocol NFC frontend IC from NXP Semiconductors, designed to facilitate seamless integration of Near Field Communication (NFC) technology into various applications. This product is part of the CLRC663 family, known for its robust design and versatile features that enable it to support a wide range of contactless communication methods.

Key Features

• Multi-Protocol Support: The CLRC66301HN is capable of handling various protocols, including ISO/IEC 14443 A/B, FeliCa, and ISO/IEC 15693, making it a versatile choice for applications requiring different contactless standards.
• High Integration: This IC integrates an RF contactless front-end and a highly integrated data framing system for ISO/IEC 14443A/MIFARE, ISO/IEC 14443B, and FeliCa applications, simplifying the design process for developers.
• Advanced Security: The product supports high levels of security, including AES, DES, and 3DES hardware encryption, ensuring secure transactions and data exchange.
• High-Speed Communication: With a fast data rate of up to 848 kbit/s, the CLRC66301HN ensures quick and efficient communication, enhancing user experience in applications such as payment systems and identification.
• Low Power Consumption: Designed with energy efficiency in mind, the IC features a power-down mode and automatic power-saving modes to reduce power consumption, making it ideal for battery-operated devices.

Applications

The CLRC66301HN is suitable for a diverse range of applications, including but not limited to:

• Point of Sale (POS) terminals
• ATM and vending machines
• Access control systems
• Public transport ticketing
• Mobile payment solutions
• Electronic identity documents

Technical Specifications

The CLRC66301HN operates at a supply voltage range of 2.5V to 5.5V and is available in a compact HVQFN32 package. It features a temperature range of -40°C to +85°C, making it suitable for a variety of environmental conditions.

Conclusion

The NXP CLRC66301HN is an exceptional NFC frontend solution that delivers high performance, flexibility, and security. Its ability to support multiple protocols and integrate with various applications makes it a top choice for developers looking to incorporate NFC technology into their products.
